An award is a printed product that is meant to be kept. It is handled, displayed, cleaned and often personalised, and it is usually produced in small quantities where a remake is visible rather than absorbed. That combination makes preparation more important than throughput.

This guide covers what governs a glass award or trophy job on a UV printer: why glass is a qualification job, how clear glass is printed, what a primer does, how a curved shape changes the plan, how the base and edges are treated, what to test, how an award programme stays consistent, and how personalisation is controlled.

Why is glass a qualification job rather than a print job?

Because adhesion on glass is chemistry.

The published guidance for glass asks for a cleaned and primed surface before printing, because the bond is created by the preparation rather than by the ink alone.

The published production sequence for glass is unusually specific: clean, prime, print white, print colour, then inspect. That order exists because glass presents a smooth, low-energy surface that many inks will not bond to without help, so the preparation step is what makes the print possible rather than an option that improves it.

The commercial consequence is that a glass job carries a preparation step a plastic panel does not, and that step has to be costed, scheduled and staffed. A shop that prices glass like acrylic will find the difference in the reject rate rather than in the invoice.

How should clear glass be printed?

Decide the viewing direction first.

On clear glass the white layer decides whether the colour is visible and whether the panel is viewed from the front or the back, so the construction follows the viewing direction.

The published artwork guidance for this range asks for white to be supplied as its own channel rather than as part of the colour image, and on glass that separation is what makes the difference between a solid graphic and a translucent one on the same piece. A design that mixes both is normal on awards, and it is only possible when the white is a separate layer.

What does a primer actually do?

It gives the ink something to bond to.

The published production sequence for glass runs clean, prime, print white, print colour, then inspect, which places the primer before any ink is applied.

The primer changes the surface rather than the image, which is why it is not visible in the finished product and why it is easy to leave out under time pressure. Leaving it out produces an award that looks correct on the bench and lifts at the first polish or wash, which is precisely the failure the sequence is designed to prevent.

Because the primer is part of the approved process, it belongs in the record as well. The published approach for this range is to record the substrate and the pretreatment, and on glass the pretreatment is the field that makes a repeat job reproducible. The preparation is also the step most likely to be performed differently by a different operator, which is why it is worth writing down rather than assuming.

How should the shape of an award affect the plan?

A curved face changes focus and coverage.

A curved award presents a changing surface angle, so the published approach is to test the real blank and confirm the printable area and the clearance.

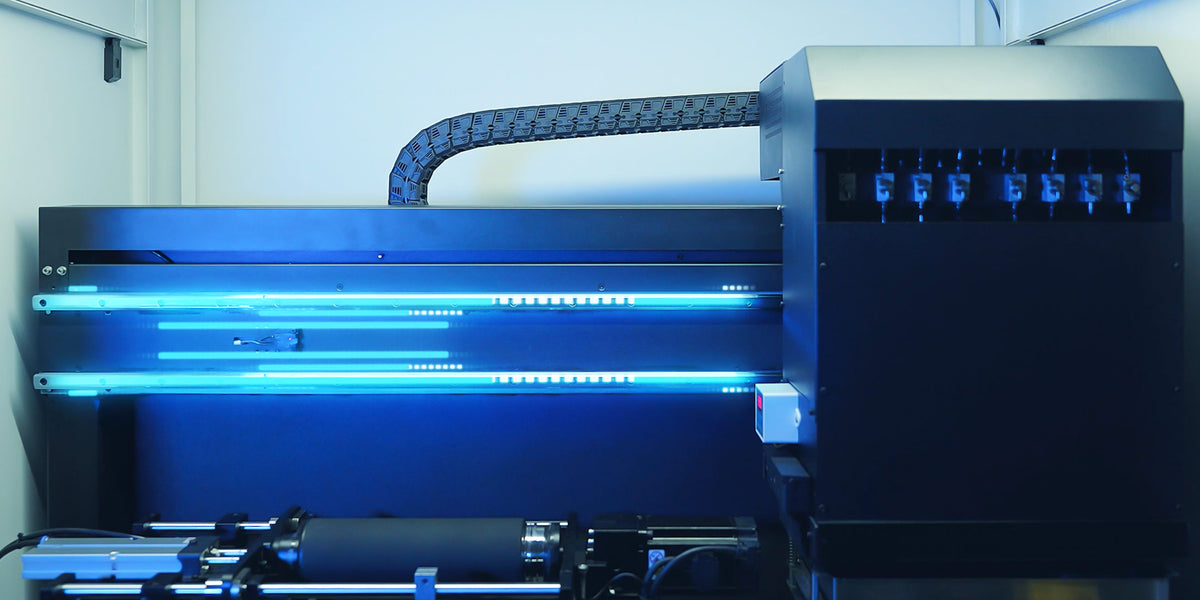

Flat award plaques and cylindrical trophies sit at opposite ends of the same problem. A flat plaque behaves like any panel: the head distance is constant and the fixture is simple. A cylindrical or tapered award is a different job, and the published cylinder platform in this range is designed for vessels with a taper, which is where the focus and rotation questions are handled by the machine rather than by a fixture.

Where a part falls between the two, the published guidance is to test the blank and confirm the printable area rather than to infer capability from the drawing. Raised rims, a domed face and an irregular profile each change the usable print zone, which is the same point the published small-part guidance makes for medals and buttons.

How should the base and edges be treated?

As finished surfaces, not afterthoughts.

The published handling guidance treats the finished surface as the thing to protect, and on an award the base and the edges are part of what the customer sees.

Two decisions belong here. The first is whether the edge is polished, ground or left as cut, because that choice changes how the piece is handled after printing and whether the printed area should reach the edge. The second is the base, which on a glass award is often the surface that contacts the desk and therefore the surface that gets handled most.

The printing consequence is a no-print zone decision. Ink that runs onto a polished edge will be visible in a way the design did not intend, and ink that stops short of an edge that should be covered leaves a border. The published artwork guidance asks for those zones to come from the current drawing, and on an award the drawing is usually a design file rather than an engineering one, which makes confirming the zones with the customer worthwhile.

What should a glass sample test cover?

Adhesion, appearance and the cleaning cycle.

The published glass workflow ends with an inspection, and a sample should also be taken through the cleaning the finished award will meet.

The checks that matter on an award are the ones a customer will perform. Adhesion, because the piece will be handled and polished. Appearance on the real glass, because a translucent or clear substrate changes how a colour reads compared with a white sample. And the cleaning cycle, because an award is often wiped with a cloth or a glass cleaner, and a print that dulls under that treatment is not a finished product.

Two published methods support the checks. Adhesion is assessed with the cross-cut tape test under ASTM D3359 and wear under ASTM D4060, and where the piece will be exposed to moisture, humidity exposure is covered under ASTM D2247.

How should an award programme keep consistency?

By fixing the blank, the file and the recipe.

The published process record covers the material, the preparation, the settings and the inspection result, which is what allows the tenth award to match the first.

An award programme is usually a repeat order spread over months, so consistency matters more than speed. Three fields carry the weight: the blank and its supplier, because a change of glass or acrylic changes both the appearance and the adhesion; the preparation method, because on glass that is the decisive step; and the approved sample with its record, because a later order is then checked against the same physical piece.

The published approach for this range is to keep the approved sample with the process record, and the same discipline covers the personalisation data. The published guidance for personalised work asks for a position-to-file matrix so that each name or serial is connected to the order it belongs to, which is what prevents a correctly printed award from reaching the wrong recipient. The file and revision requirements are set out in the article on preparing artwork files.

How is personalisation controlled?

As a records problem as much as a print.

Variable data turns an award order into a data-handling job, so the file source, the part mapping and the verification step have to agree.

The published guidance for personalised work states that the current file source, part mapping, verification and traceability process should be reviewed before production. On an award that means each personalised element is connected to a named recipient and to an order line, and the verification happens at the printer rather than at dispatch.

The practical control is a loading position and a check. If the awards are loaded in a fixed order that matches the data sequence, the position itself becomes the verification, and a mismatch is visible immediately rather than after the box is sealed. Where the award is loaded without an order, the verification has to move to a scan or a manual check, which is slower and more error-prone. Material and chemical obligations for the inks and the primer follow the applicable regulations (REACH), and occupational guidance for the workshop is published by the relevant authority (HSE printing). Process practice for print operations is published by the bodies in the field (PRINTING United Alliance).

What the decision comes down to

A glass award is a preparation job with a print on top. Clean and prime the blank, decide the viewing direction before the layers, treat the base and edges as part of the design, test adhesion and cleaning on the real material, and keep the personalisation tied to the order.

The published glass and platform guidance for this range sits with the AJ360i and AJ1206 pages, the material workflow is set out in the guide to UV printing on glass, and the file requirements are covered in the article on preparing artwork files.
