Curing is the part of the process nobody watches until something goes wrong. The print looks right as it leaves the machine, the panel passes a visual check, and the problem appears weeks later as reduced adhesion or a surface that marks under handling. By then the cause has been shipped.

This guide covers how curing behaves over the life of an industrial UV printer: why it belongs in the maintenance plan, what kind of curing this range uses, how the system ages, what that changes in the printed result, how to monitor it, how it interacts with heat-sensitive materials, and what records keep the process under control.

Why does curing belong in a maintenance plan?

Because an under-cured print fails later.

Curing decides whether the ink film is fully set, and a film that is under-cured can pass a visual check and still fail on adhesion or handling weeks later.

The reason this failure mode is dangerous is that it is invisible at the point of production. An under-cured film looks like a cured film; the difference appears in service, when the part is handled, cleaned, flexed or exposed. The published method for checking adhesion, the cross-cut tape test under ASTM D3359, is the standard way to catch it before delivery rather than after.

The commercial consequence is straightforward. A cure problem discovered in the shop costs a reprint of one batch; the same problem discovered by a customer costs a recall, a credit and the relationship. Curing therefore belongs in the routine rather than in the exception list.

There is a second reason to keep curing in the routine: it is one of the few process variables that can drift without any part of the machine reporting a fault. The head still fires, the file still sends, and the panel still looks correct. Only the result in service reveals the change, which is precisely why the check has to be scheduled rather than triggered.

What kind of curing does this range use?

UV LED curing across the platform.

The published curing position for this range is UV LED, which sets the ink without the heat a conventional dryer would apply to the material.

That matters because of what it allows rather than only how it works. A heat-sensitive substrate such as a thin plastic sheet, a coated board or a finished panel can be printed without a drying stage that would distort or damage it. The published material guidance for this range relies on that property when it describes printing on acrylic, foam board, coated metal and containers.

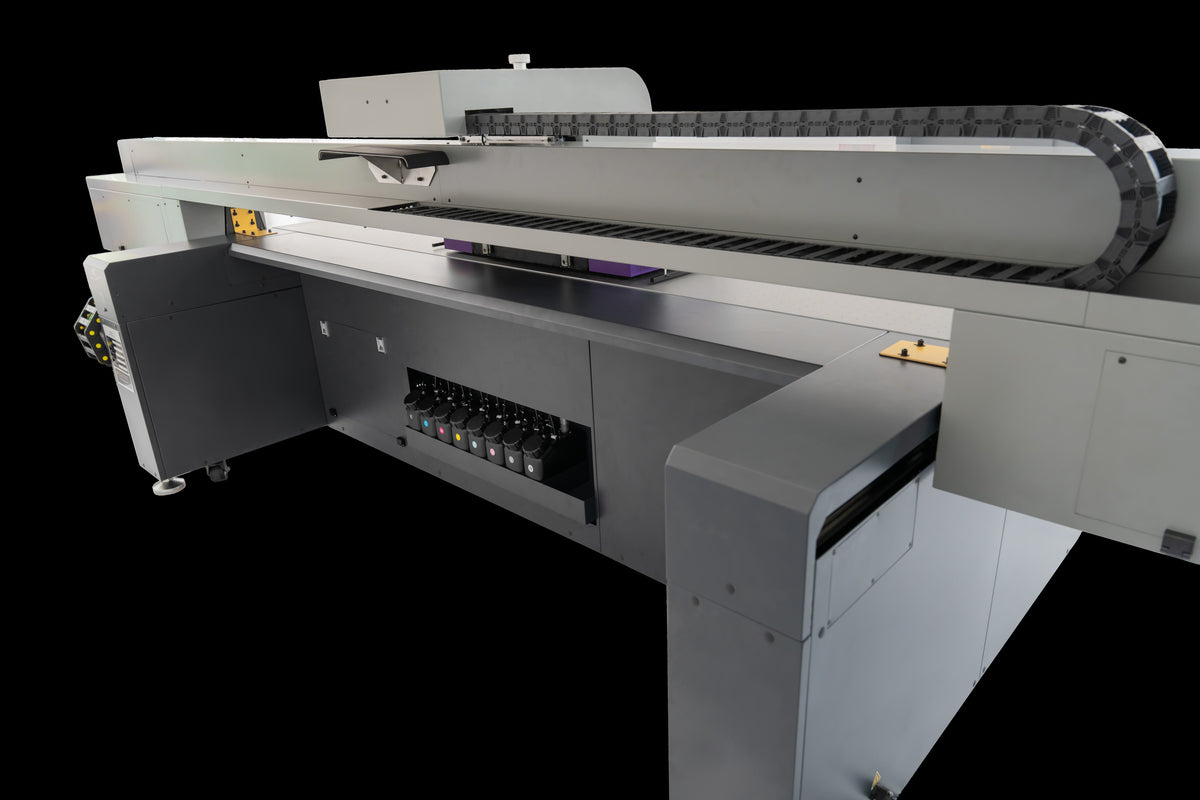

The safety side is published as well. The platform includes a rear UV light shield, which is part of how the machine protects the operator from the curing light during a run. Occupational guidance for a workshop working with UV systems and inks is published by the relevant authority (HSE printing), and the two belong in the same conversation.

How does a curing system age?

Its output falls gradually with use.

An LED curing system does not usually fail suddenly; its output declines over its working life, which is why the published approach is to monitor the effect rather than wait for a fault.

The point of the list is the order. The functional failure appears last, and by then several batches may have been produced with a marginal cure. Monitoring the earlier signs is what turns a gradual change into a planned adjustment.

What does aging change in the print?

Adhesion, hardness and surface behaviour.

A weaker cure shows up as reduced adhesion, a softer film and a surface that marks more easily, which is why a print quality trend is the earliest indicator.

The three effects are related but not identical, and they matter to different customers. Adhesion is the structural question, and it is the one an industrial buyer will test. Hardness is the handling question, and it decides whether a part survives assembly and packing. Surface behaviour is the appearance question, and it is what a customer notices when a printed panel picks up a mark it would not have picked up before.

Because the three move together, a single check can act as an early warning for all of them. A recorded tape test at a fixed interval, on the same material, produces a trend that shows a decline before any of the three becomes a defect.

How should curing be monitored?

With a fixed check on the routine.

The published approach is to record the parameters and the result at fixed intervals, so a slow change becomes visible as a trend rather than as a failure.

The published process record for this range covers the artwork version, the settings, the substrate and pretreatment, the fixture or loading method, the bed position, the environmental conditions and the inspection result. A curing check adds two entries to that set: the parameters the machine was running and the result of the check performed on the output.

Two conditions belong in the same record. The ambient environment, because this range is published to run between 20 and 30 degrees Celsius and 40 to 60 percent relative humidity, and a change in the shop can shift how a film sets. And the material, because a different substrate changes the curing demand even when the lamp has not moved.

How does curing interact with heat-sensitive materials?

It sets ink without a hot drying cycle.

That is why the process suits materials that would distort under heat, and the published material guidance still asks for the specific material to be tested.

The published material guidance for this range is consistent: a listed material is not automatically production-ready, and the substrate, coating and preparation all have to be confirmed on a representative part. Curing removes one constraint, namely heat, and it does not remove the others.

That distinction matters when a shop moves a job between materials. Printing the same artwork on a thinner sheet, a different coating or a different colour changes both the ink demand and the curing behaviour, so the qualification is repeated rather than transferred. The published guidance to test the actual material is the rule that keeps that discipline in place.

Where does curing sit in the consumables plan?

Alongside the parts that wear.

The published warranty excludes ink, tubes, filters and printheads as consumables, and the curing system is monitored through the maintenance routine that protects the printed result.

The published consumables position for this range names ink, ink tubes, filters and printheads as the parts that wear with normal use, and it describes the capping and wiping design and the waste ink collector as part of the same maintenance picture. Curing sits beside those items because it is monitored rather than replaced on a fixed calendar.

The published support model helps with the diagnosis as well. With technical support at a 3-hour response, more than 80 percent of issues resolved remotely and spare parts availability guaranteed for 8 years, a curing question can be escalated with the settings and the sample in hand rather than investigated from scratch. The routine itself is set out in the guide to UV printer maintenance, and the wider parts position is covered in the article on consumables and replacements.

What records support the plan?

Settings, results and the maintenance log.

The published process record covers the settings and the inspection result, and a curing record adds the system condition and the date of the last check.

The value of the record is that it converts a subjective impression into a comparison. A tape test recorded at the start of the quarter and again at the end shows a direction, and a direction is what allows a maintenance action to be planned into a quiet week rather than discovered during a deadline.

Colour and process practice for industrial print is published by the bodies in the field (Fogra, PRINTING United Alliance), and the material side of the question follows the applicable regulations for the inks involved (REACH). Wear testing, where a customer requires it, is covered under ASTM D4060, and humidity exposure under ASTM D2247.

What the decision comes down to

Curing is a routine variable rather than a fixed condition. Monitor the printed result and the parameters together, keep the tape test on a fixed interval, record the environment with the result, and treat a change in material as a reason to repeat the check.

The published curing and platform guidance for this range sits with the AJ2130G/R and AJ1206 pages, the routine is set out in the guide to UV printer maintenance, and the parts position is covered in the article on consumables and replacements.
