AJ1206 Small UV Flatbed Printer

The AndresJet AJ1206 brings industrial-grade printing to small and medium-sized businesses. Get professional performance and exceptional speed in a compact, budget-friendly design perfect for scaling your production.

Pinpoint Accuracy: Achieves an incredible 0.01mm positioning tolerance with dual Y-axis motors.
Expanded Color Gamut: Supports up to 8 colors, including CMYK, White, Varnish, and light inks (Lc, Lm, Lk)
High-Speed Throughput: Capable of printing up to 2,000 coins per hour, boosting your efficiency.
Advanced Vision System: Features an optional wide-beam scanning camera (CCD) for enhanced precision

0.01

Positioning Accuracy,Dual Y-Axis Motors

Colors

CMYK + W + V, Lc + Lm + LK

2,000

Coins/hr

Printing Speed

Optional

Wide-Beam

CCD Scan Camera

The Andresjet AJ1206 Compact UV Flatbed Printer with CCD Visual Positioning

The Andresjet AJ1206 is engineered to dramatically improve your workflow for printing on small, custom items like medals, coins, and buttons. As a powerful Compact UV Flatbed Printer, its standout feature is the intelligent CCD visual positioning technology.

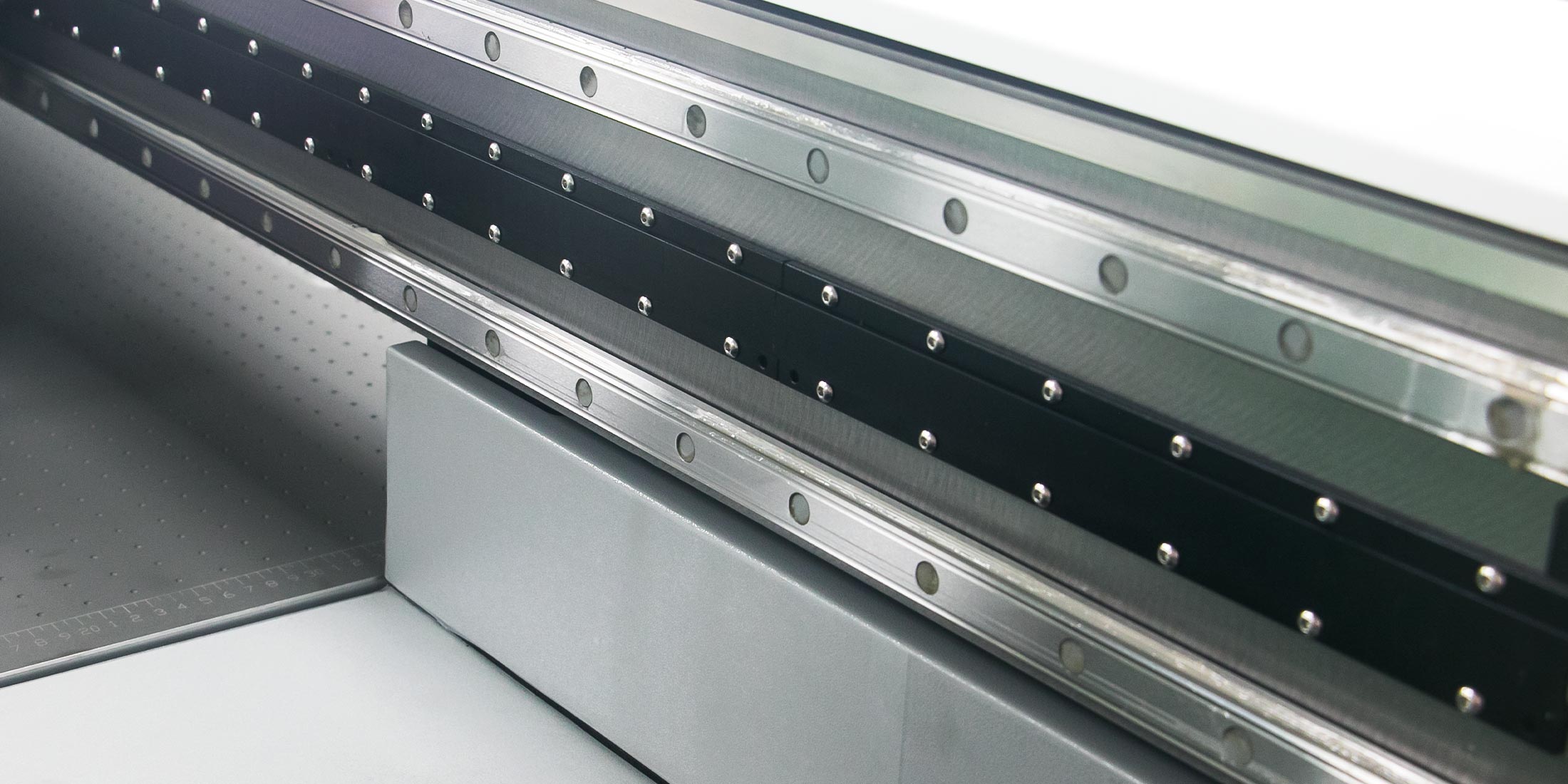

Mag-Lev Guides

Tapered-Hole Vacuum Flatbed Design

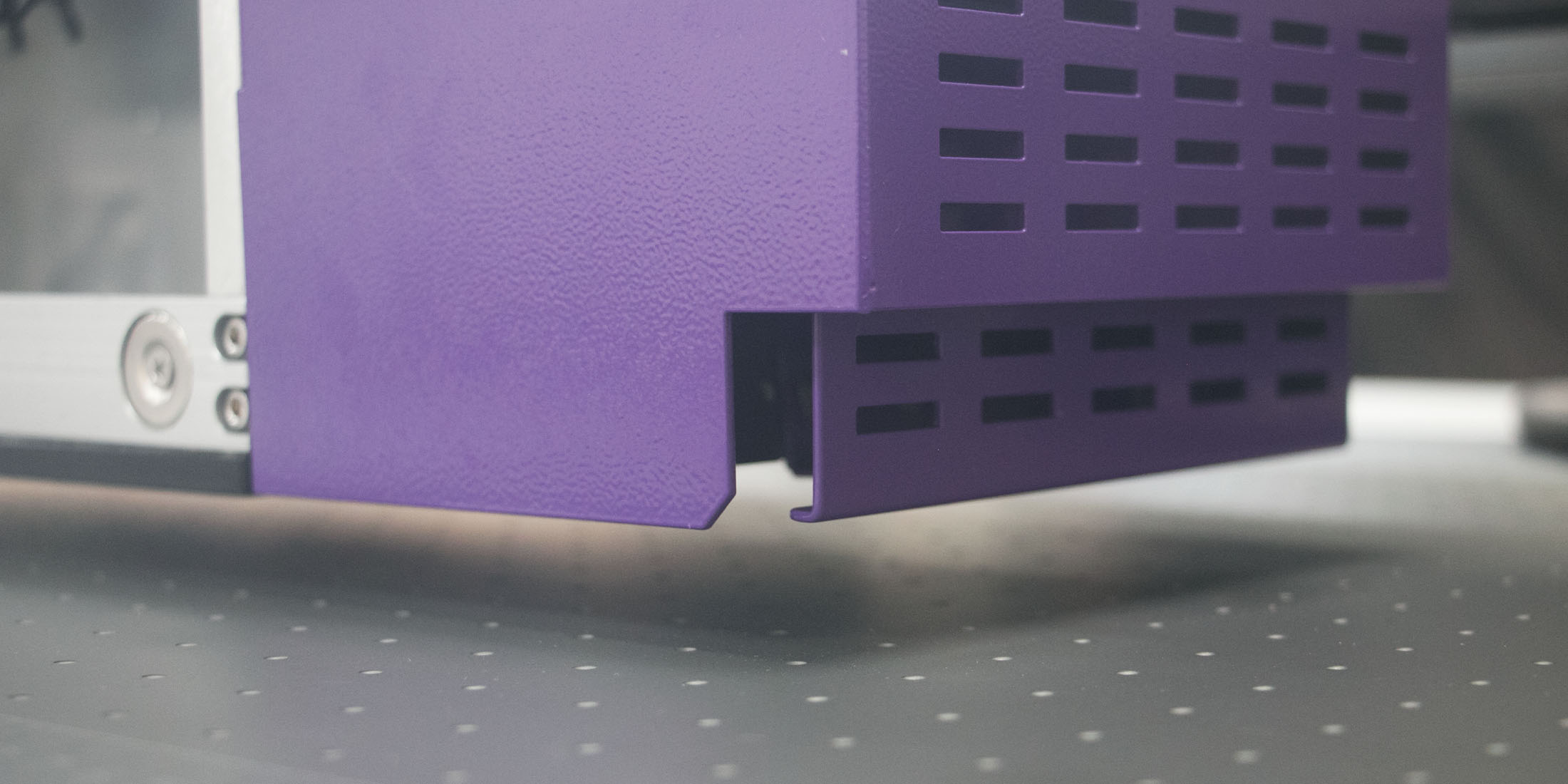

Printhead Anti-collision System

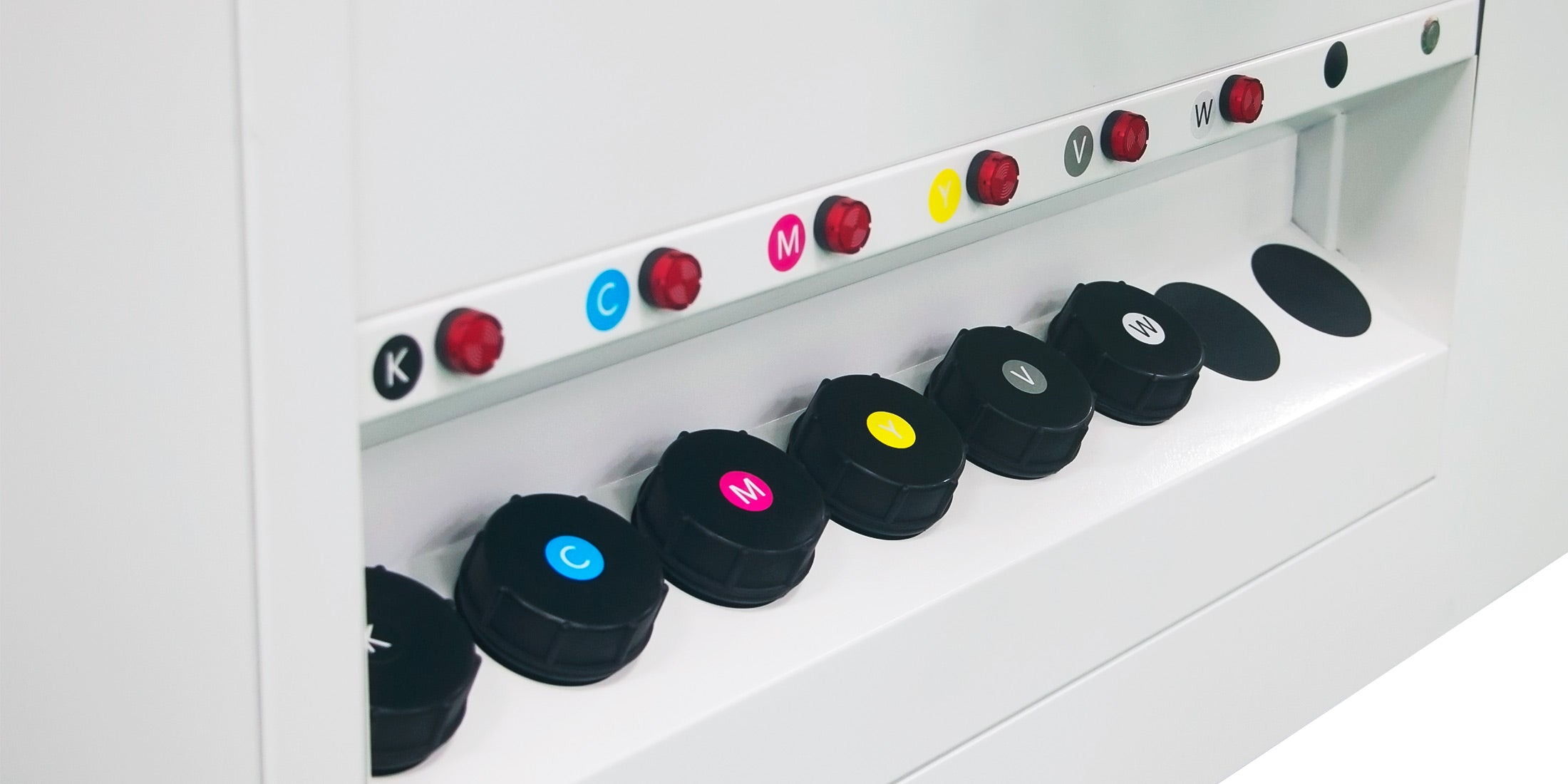

Easy Ink Refill

Technical Specifications

Model

AJ1206

Printhead

TOSHIBA CE4M Print Head

Printhead Quantity

4 (standard), upgradeable to 8 (optional), CMYK + White + Varnish

Print Resolutions

300*1200DPI, 300*1800DPI, 300*2400DPI

Print Speed

Up to 2000 Coins/hour

Maximum Printing Area

1200 mm × 600 mm (approx. 3' 11" × 1' 11.6")

Ink Curing

UV LED Curing

Media Thickness

0mm - 35 mm (1.38 in)

Max Media Weight

36 kg (79.4 lb)

Ink Type

Eco-Print 100, Eco-Print 200

Interface

Ethernet, USB 3.0

Power Supply

AC220V, 50/60Hz

Power Consumption

3kW or less

Operating Environment

Temperature: 20-30°C (68-86°F), Humidity: 40-60% RH (Non-condensing)

Packing Dimensions

275 x 129 x 165 cm (108 x 52 x 55 in) (W x L x H)

Net Weight & Gross Weight

400 kg (882 lb) ; 520 kg (1146 lb)

Our Qualifications

CE Certified

Regulatory Compliance Mark

UK Conformity Assessed

AJ1206 Digital Cylinder Printer-FAQ

What makes the AJ-1206 different from other UV printers?

Revolutionary CCD visual positioning technology eliminates manual alignment and custom jigs. Simply place items anywhere on the 120cm × 60cm platform—the system automatically detects, positions, and prints with perfect accuracy.

How does the CCD visual positioning work?

The intelligent CCD camera scans the entire print bed, automatically identifies each item's precise position and outline, then executes flawless printing. No more time-consuming manual placement or custom fixtures required.

What items can it print and how fast?

Perfect for medals, coins, buttons, and small custom items up to 3.5cm thick and 36kg weight. Achieves up to 2000 coins per hour with place-and-go freedom—just load multiple items and let it work.

What print quality and options are available?

Professional resolution up to 300×2400 DPI with TOSHIBA CE4M printheads. CMYK + White + Varnish capability using Eco-Print inks, with 4-8 head configurations available for maximum productivity.

What materials and thickness can it handle?

Universal material compatibility with UV LED instant curing on plastics, glass, metal, wood, ceramics, and specialty substrates. Handles items from 0-35mm (1.38") thickness.

Is it easy to operate and integrate?

Effortless operation—simply place items on the platform and start printing. Ethernet and USB 3.0 connectivity integrates seamlessly with existing workflows. Energy-efficient 3kW power consumption.
