AJ360i Cylinder & Taper Printer for Direct-to-Object

Q: How fast does it print?

· Production mode: 60 items/hour · High quality: 40 items/hour · Setup time: 15minutes per product changeover Speed varies by object size and print coverage.

Q: Is setup difficult?

No! Quick-change fixtures, and 2-point calibration system. Total setup typically 60 minutes . Andresjet includes 3 days training.

Q: Can it print on dark objects?

Yes! White ink base system with Four white channels. Also prints spot varnish, raised effects up to 0.15mm , and metallic finishes. Sample service available at FREE for first 3 samples .

AJ360i Digital Cylinder Printer

Overview
Basics
Specifications
Honours
FAQs

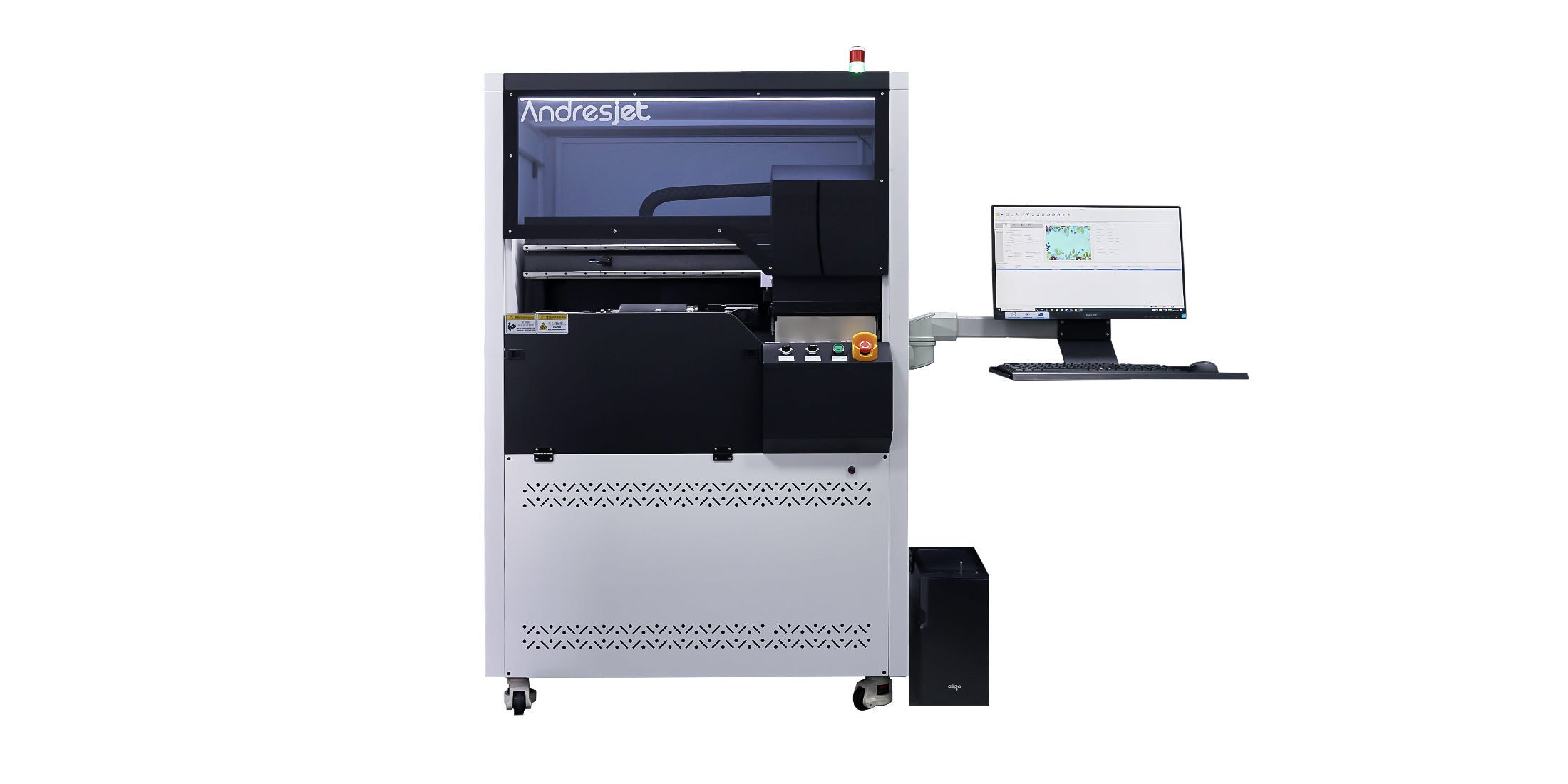

AJ360i Digital Cylinder Printer

Transform your products with the AndresJet AJ360i. This direct-to-object printer is built to apply breathtaking, seamless graphics onto a wide variety of cylindrical and conical items with exceptional speed and reliability.

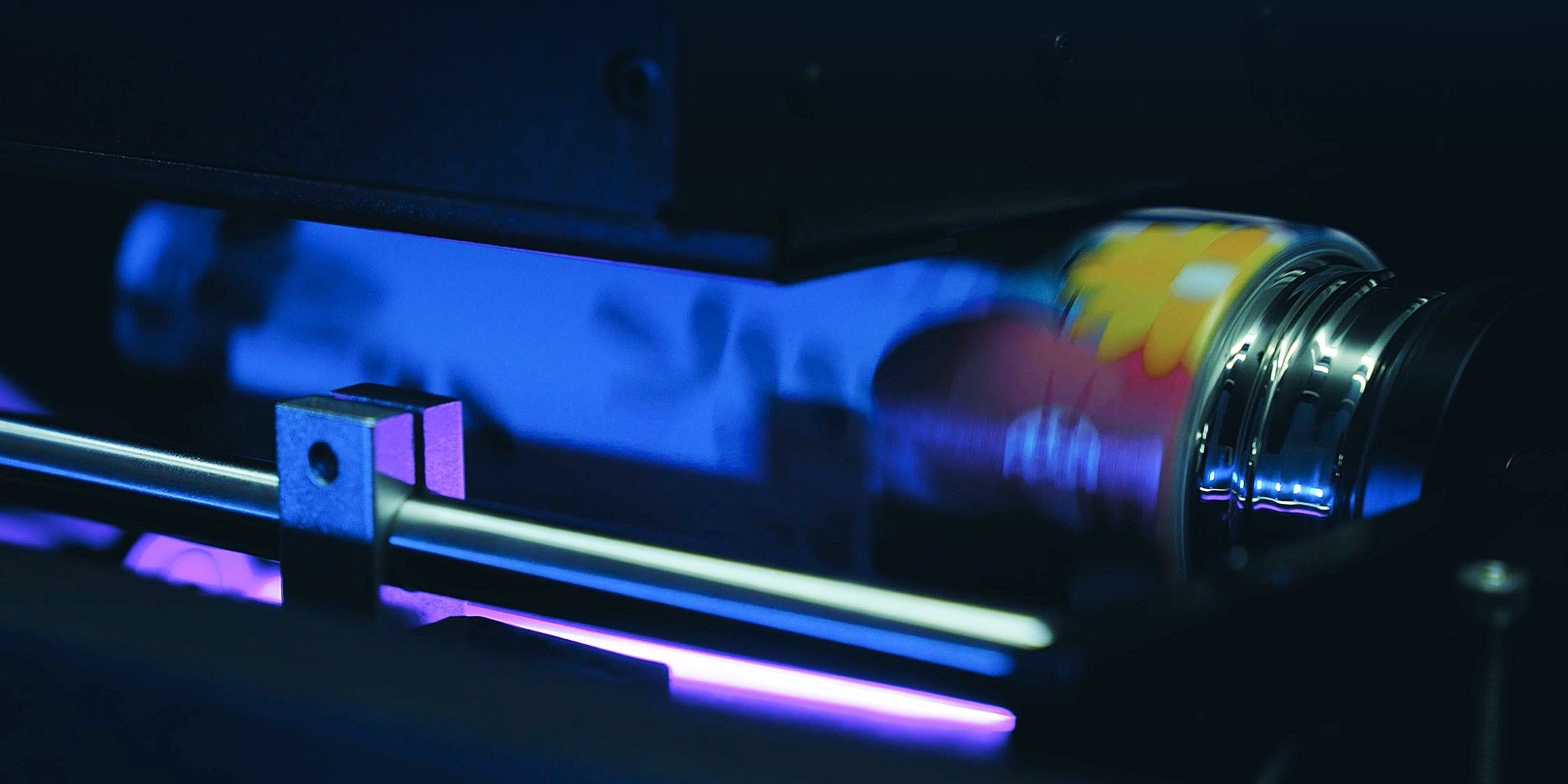

Direct-to-Shape: Prints flawlessly on both straight-walled cylinders and tapered vessels
Full-Spectrum Ink: Features CMYK, White, and Varnish for incredible depth and quality
24/7 Uptime: Engineered for continuous, around-the-clock industrial production
Dedicated Local Support: Access expert teams in Asia, the EU, and the USA

Cylinder & Taper Printing Capability

CMYK + White + Varnish

7 x 24 Non-stop Printing

Dedicated Local Support for Asia, EU and US

Masterful 360° Printing for Cylindrical & Tapered Products

Unleash vibrant, seamless graphics directly onto your cylindrical and tapered products with the AndresJet AJ360i. We've engineered a powerhouse industrial printer that transforms everyday items like glassware, tumblers, bottles, and cosmetic tubes into premium, high-value products. Forget limitations—the AJ360i is built for demanding, 24/7 production environments, delivering stunning, high-resolution prints with unparalleled consistency.

360° Anti-Collision System

Ergonomic Computer Mount

Manual Origin Point System

External Ionizer Bar

Technical Specifications

Model

AJ360i

Part Diameter

Standard Base 60-170MM, Optional 10-60MM and 170MM－240MM

Taper Angle Range

0－7°

Print Length

40MM－270MM

Print Speed

60 S/PC（based 3.14 inch（or 80mm）in CMYK)

Print Mode

Stepping or Helix

Printhead Type

Piezo drop-on-demand print heads

Print Resolution

720 x 1200 DPI

Ink Configuration

K、C、M、Y、White、Varnish

Software

Controlling Software and RIP software included

Support File

TIFF, JPG, EPS, PDF, PNG, AI, PSD

Ink Type

LED UV

Power Supply

50HZ AC220/110± >10A with ground wire

Environment

Temperature：20-30℃ Humidity：30%-60%

Net Weight

350KG

Dimension

1160mm*870mm*1800mm(L*W*H)

Print Media Shape

all cylinder, taper parts, cones and vessels

Our Qualifications

CE Certified

Regulatory Compliance Mark

UK Conformity Assessed

Canadian Standards Association (CSA) Certification

Frequently asked Question

What can the AJ360i print on?

The Andresjet AJ360i prints on bottles, cups, mugs, tubes, pipes, and cylindrical objects from 60mm to 170mm diameter, up to 270mm length and 3KG weight.

How fast does it print?

· Production mode: 60 items/hour

· High quality: 40 items/hour

· Setup time: 15minutes per product changeover

Speed varies by object size and print coverage.

Is setup difficult?

No! Quick-change fixtures, and 2-point calibration system. Total setup typically 60 minutes. Andresjet includes 3 days training.

What is the system that holds the object in place? What if none of your standard jig fixtures fit my product?

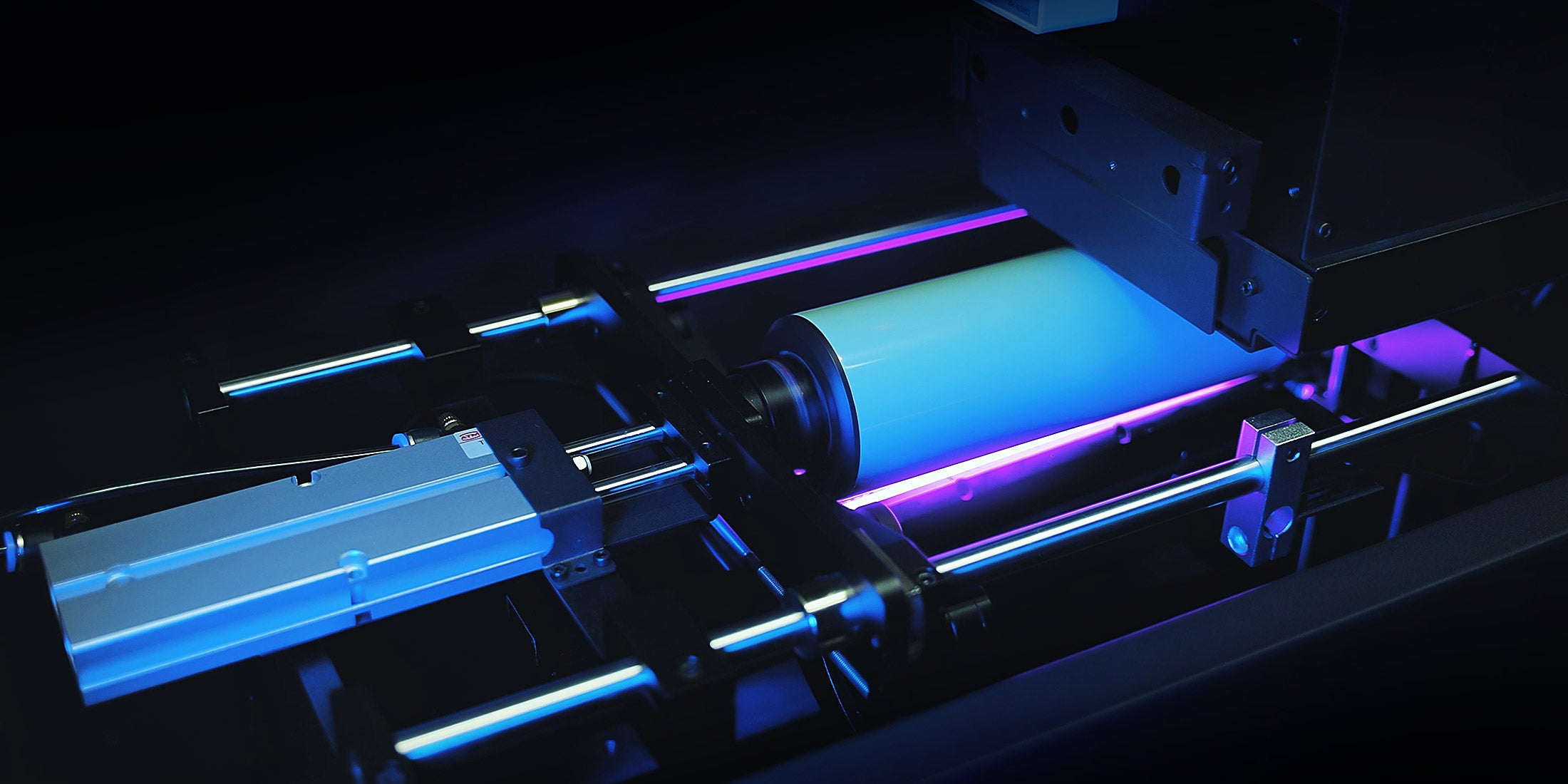

Advanced pneumatic clamping system with 7 standard fixtures covering (Ø60-170mm). Features tool-free, quick-change design with setup in under 12 minutes.

For special requirements: We provide 2 custom fixtures at no extra cost to accommodate unique shapes and extended diameter range (Ø10-240mm). Custom fixture design typically completed within 7-10 business days.

What are the printing costs?

· Small items (lip balm tubes, small bottles): USD 0.05 to 0.12 per piece

· Medium objects (water bottles, cups, cosmetic bottles): USD 0.12 to 0.30 per piece

· Large items (large tubes, sports bottles): USD 0.30 to 0.65 per piece

Costs depend on size, coverage, and colors used.

Frequently asked question

Use this text to answer questions in as much detail as possible for your customers.

Can it print on dark objects?

Yes! White ink base system with Four white channels. Also prints spot varnish, raised effects up to 0.15mm, and metallic finishes. Sample service available at FREE for first 3 samples.

What support does Andresjet provide?

· 24/7 technical support with 3 hour response

· 2 years comprehensive warranty

· On-site training and application support

· Guaranteed parts availability for 8 years
