Furniture and cabinet work is one of the largest flat-panel printing opportunities for a UV flatbed, and it is also one of the most misunderstood. The board that arrives at the bed is rarely raw timber; it is usually a decorative face bonded to a core, and the face is what receives the ink. Print a laminate the way you print plywood and the result will disappoint.

This guide covers how to qualify a laminate, veneer or cabinet panel before production: identifying the board and its face, controlling the surface, treating edges and cut-outs as no-print zones, planning white ink and varnish on a coating, testing the real panel, nesting the job, and recording what has to be repeated.

Why do laminate panels behave differently from raw wood?

Because the face is a coating, not the substrate.

The published guidance for this range is that raw MDF, plywood and coated wood panels do not respond identically to UV ink, so the finish and construction must be identified first.

The physical reason is that adhesion is a surface property. A melamine laminate, a high-pressure laminate, a veneer with a lacquer and a painted decor board each present a different surface energy and a different level of porosity, and the ink bonds to that face rather than to the core beneath it. The published wood collection describes the relevant variables plainly: dust, loose fibres, resin, moisture and uneven absorption can all affect edge definition, white ink consistency, adhesion and the finished appearance.

Two practical conclusions follow. The first is that a panel which prints perfectly in one finish can fail in another finish from the same mill, so the finish and the batch belong in the specification. The second is that a wood-grade test does not transfer to a laminate job. The published instruction is to record the construction, supplier, grade, thickness, density, coating, face and batch rather than testing an unspecified sample.

How should a cabinet panel be qualified?

Identify the board, the face and the batch first.

A panel should be qualified from the actual construction and finish, with a representative sample tested before any printer configuration or output target is set.

The published qualification sequence for wood-based panels starts with the board: construction, supplier, grade, thickness, density, coating, face and batch. It then moves to preparation, which means standardising cleaning and confirming whether sanding, sealing or a primer is required for the required appearance and adhesion. Only after that does it consider the print, and the published sample test checks colour, adhesion, scratch resistance, white-underbase coverage and any varnish effect.

Cabinets add one dimension that a flat panel does not. The part is usually one component of an assembly, so a door front, a drawer face and a side panel may come from the same board but be printed at different times. Qualifying the assembly as a set, with a single approved sample and a single recipe, is what keeps a finished kitchen looking like one piece rather than three.

What does the decorative face do to adhesion?

It sets adhesion far more than the core does.

Because the ink bonds to the coating, the coating condition is the variable that decides whether the print survives handling, cleaning and fitting.

The published metal and wood guidance makes the same demand in different words: identify the substrate, control the surface, and remove the contamination the eye cannot see. On a laminate that means the release agents, polish, finger oils and dust left from cutting, and on a sanded veneer it means the loose fibre that lifts under the head. A cleaning method that is standardised and recorded is worth more than a stronger ink, because the ink can only bond to what it is given.

Where the face has been altered, the recipe has to be altered with it. A primer or a light abrasion applied to improve adhesion changes the surface appearance, so the preparation method becomes part of the approved specification rather than a step the operator chooses. The published guidance is to evaluate only an approved primer or pretreatment when one is needed, and to record it with the batch.

How should edges and cut-outs be handled?

Edges and cut-outs are controlled no-print zones.

Door edges, handle cut-outs, hinge positions and drawer bores should be mapped from the current drawing, because the machine cannot know where a cut-out will be made later.

The published artwork guidance for this range asks for cutouts, openings, fasteners, vents, bends and raised rims to be mapped as controlled no-print zones and for the file to carry the clearance rather than leaving it to the operator. On cabinet work the same discipline applies to the components that are routed after printing, and to the edges that will be banded. Ink that runs onto a banded edge is wasted, and ink that stops short of a cut line leaves a visible border.

Bleed belongs in the same decision. A printed panel that is trimmed to size needs an allowance, and the allowance has to match the tolerance of the trimming method. Where the panel is cut by the furniture maker rather than in the print shop, that tolerance is part of the conversation, because an artwork built on a registered position is only as repeatable as the panel it is printed on.

How do white ink and varnish work on a coated face?

Evenly, and against an approved physical reference.

White builds opacity on a dark or patterned face and varnish adds a controlled gloss or a raised effect, and both should be judged against a reference rather than a screen.

A laminate face is often dark, patterned or glossy, and each condition changes what the white layer has to do. On a dark face the white underbase is what makes the colour read correctly, and the published wood guidance lists white-underbase coverage as one of the tests a representative panel must pass. On a glossy face the same white layer can appear to change with the viewing angle, so the viewing condition belongs in the approval.

Varnish adds a second decision. The same channel can produce an overall gloss, a spot highlight or a raised effect, and on furniture the choice is usually driven by the design intent rather than by coverage. Because the panel may later be handled, cleaned and fitted, the varnish should be validated for the handling the finished piece will actually see, not only for its appearance on the sample bench.

What should the panel sample test cover?

Adhesion, scratch, colour and white coverage.

The published sample test for a wood-based panel checks colour, adhesion, scratch resistance, white-underbase coverage and any varnish effect before a printer configuration is selected.

One further consideration belongs to the material rather than the print. Panel products that use resin binders can emit formaldehyde, and the published guidance on that emission is set by the relevant authority (EPA formaldehyde). Where the finished panel is used in an interior, the emission and the surface finish are part of the specification the buyer will check, so they belong in the conversation before the artwork is approved. Occupational guidance for workshops that cut and machine these boards is published by the relevant authority (HSE woodworking).

How does nesting change the panel plan?

Around the largest panel and the strongest grain.

Nesting raises the value printed in one run but also raises the cost of a defect, so the layout should follow the largest panel and the grain direction rather than the smallest part.

The published guidance for standard sheet work asks a buyer to review the largest panel, the most frequent panel and the changeover pattern rather than selecting a bed around one unusual job. Cabinet work is the same problem in miniature: door fronts, side panels and drawer faces are usually a set, and nesting them onto one board trades material efficiency against the risk of a single fault affecting several components.

Hold-down belongs in the same decision. A thin panel with a slight bow is harder to hold than a thick board, and the published substrate guidance for this range covers zoned vacuum, masking and the loading checks that prevent the panel from moving under the head. Where the panel is thin or the face is glossy, a fixture or a masking strategy is often what makes a nested job reliable rather than the vacuum alone.

What should be recorded for repeat orders?

The board, the face, the batch and the recipe.

A repeat cabinet job is reproduced from a record rather than from memory, so the board source, the finish, the preparation method, the artwork version and the settings travel together.

The published process record for this range covers the approved artwork version, the RIP and ink-layer settings, the substrate and pretreatment, the fixture or loading method, the bed position, the environmental conditions and the inspection result. For cabinet work, three additions matter: the board supplier and batch, because a change of laminate can change the result; the seal or primer method, because it alters the appearance; and the finishing sequence, because panels are often banded, drilled and assembled after printing.

Where the surface is a coating rather than a bare board, the chemical and material obligations for the inks and the substrate follow the applicable regulations (REACH). Process control practice for industrial print is published by bodies in the field (PRINTING United Alliance), and the test methods named in an acceptance clause are published by the standards bodies: adhesion under ASTM D3359 and wear under ASTM D4060.

What the decision comes down to

A laminate or cabinet panel is qualified from its face, not from the word on the board. Record the construction and the finish, standardise the preparation, map the edges and cut-outs as no-print zones, and test a representative set before a printer or an output target is chosen.

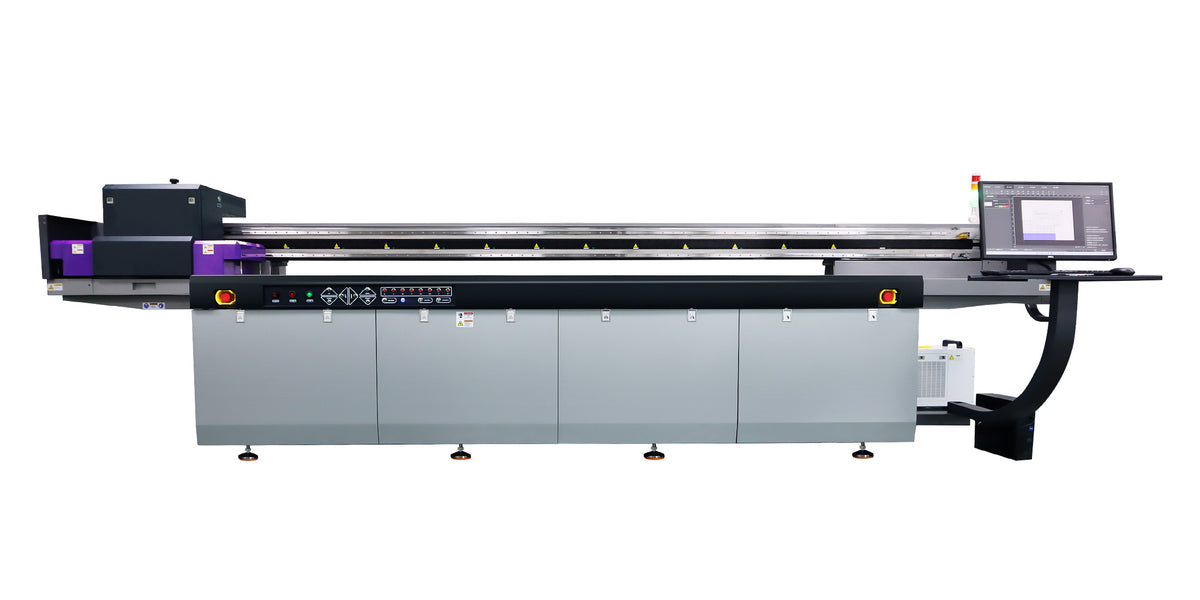

The published panel qualifications for this range sit with the wood and MDF collection and the AJ3220G/R page, the material workflow is covered in the guide to UV printing on wood and MDF, and the hold-down questions are covered in the article on substrate holding.
