Aluminium composite panel is the workhorse substrate of modern signage, and it is a deceptive one. It feels like metal, cuts like wood and prints like neither. The ink lands on a thin coil coating over a plastic core, so the result depends on the coating rather than on the aluminium, and a job that works on one supplier’s panel can fail on another’s.

This guide covers how to qualify an aluminium composite or Dibond panel before production: identifying the panel and its coating, dealing with the protective film, deciding when a primer is justified, planning white backing, handling cut edges, testing the panel, and keeping a repeat signage program consistent.

Why does an ACP panel behave differently from sheet metal?

Because the face is coil-coated and the core is plastic.

The coating carries the ink, the core carries the stiffness, and the two respond differently to heat, handling and cutting, so the printable face has to be identified before the print is planned.

The published metal guidance for this range names the variables that matter: the panel construction, the paint or anodised finish, oil residue, oxidation, protective film and surface energy. On a composite panel each of those sits on the coating rather than on the metal, which is why a coated aluminium sheet and an aluminium composite panel with the same nominal alloy can print differently. The published instruction is to record the metal type, coating or finish, supplier, batch, dimensions, thickness, weight, flatness and intended print face.

Two consequences follow. The first is that the coating type, not the alloy, is the specification that governs adhesion, so the panel should be ordered by coating rather than by metal grade alone. The second is that a change of supplier is a change of substrate, so the qualification has to be repeated when the panel source changes even if the name on the order is the same.

How should the panel coating be identified?

Record the coating, supplier, batch and thickness.

Qualification starts from the exact panel construction and finish, with the print face recorded, because a composite panel has two faces and they are not always identical.

The published metal workflow is to identify the substrate and record the metal type, coating or finish, supplier, batch, dimensions, thickness, weight, flatness and intended print face. That last field matters more on a composite panel than on a sheet, because the two skins can differ in coating, and printing the wrong face produces a result that no setting can rescue.

Flatness belongs in the same record. A composite panel is stiff, but a large sheet can still bow, and the published guidance for standard sheet work warns that sheet bow, cleaning, loading and unloading all change the real output. A bowed panel also changes the head-to-surface distance across the sheet, which affects focus and therefore the edge quality of the print.

What does the protective film hide?

Contamination and surface energy you cannot see.

The published guidance is to remove the film when appropriate and then control oil, fingerprints, oxidation and cleaner residue before the panel is printed.

Protective film is applied at the mill to protect the coating in transit, and it also conceals what is underneath. Adhesive residue, a scuff in the coating, a patch of oxidation or a fingerprint from the last handling can all sit under the film and only appear once it is removed. Removing the film well before printing, and inspecting the bare face, is what turns a hidden defect into a decision rather than a reprint.

Time matters with the film as well. Film left on a panel for a long period can leave residue that resists ink, and film removed and then left off leaves the face exposed to the workshop. The published guidance is to remove it when appropriate and to control the surface afterwards, which in practice means a defined window between stripping the film and printing the panel.

When is a primer needed?

When the approved test shows the coating needs it.

A primer is added on evidence from a representative sample rather than by default, and only an approved product should be used because it changes both the appearance and the process.

The published metal guidance is deliberately conditional: remove contaminants and confirm whether a compatible primer or pretreatment is required. The word required is doing the work. A primer is not a universal improvement, because it adds a process step, changes the surface appearance and becomes part of the specification that has to be repeated on every order. Where the coating already bonds well, the primer adds cost without benefit.

The decision therefore comes from a test. Where a representative coated panel passes the cross-cut tape test without a primer, the process stays simple. Where it fails, the primer is evaluated and, if it fixes the adhesion, it is recorded as part of the approved recipe. Testing before and after the primer on the same panel is the only way to know whether it helped.

How should white backing be planned?

As a layer inside the artwork, not a fix at the bed.

On a dark or coloured coated face the white layer decides whether the colour reads correctly, so it belongs in the file rather than in the operator’s judgement.

The published metal workflow lists white-ink opacity alongside adhesion, colour and scratch resistance as the checks a representative panel must pass. On a composite panel those checks interact, because the coating colour, the white layer and the top colour together produce the printed result. A white layer that is too thin will let a dark coating show through and dull the colour; a white layer that is unnecessary on a light panel adds ink and time for no benefit.

Comparing constructions on the real panel is the practical method. The published guidance for direct printing is to test the actual material rather than infer compatibility from a material label, and a side-by-side of colour-only, selective-white and white-backed prints on the same panel answers the question in minutes. Where the panel is viewed in a particular light, that is the condition in which the comparison should be made.

How are cut edges and routing handled after print?

Route, seal or leave exposed, by the specification.

The cut line and the bleed belong in the artwork, because a printed panel that is trimmed afterwards is only as repeatable as the trimming method.

Composite signage is usually routed to shape after printing, and the routed edge exposes the core. That edge is the part of a composite sign most likely to fail in service, because water can penetrate the exposed core, which is why the edge treatment is a specification decision rather than a finishing detail. The published artwork guidance for this range asks for the cut path and the bleed to be recorded with the project, and for the tolerance of the cutting to be part of the same conversation.

Registration is the second consideration. Where a graphic depends on a routed opening or a panel edge, the print has to be positioned relative to the cut rather than relative to the sheet, and that demands a datum that survives the routing. Recording the datum and the cut path with the file is what allows a repeat order to be cut and printed in the same relationship.

What should the panel test cover?

Adhesion, scratch, colour, white and weathering.

The published metal workflow tests adhesion, white-ink opacity, colour and scratch resistance on a representative panel, and adds the durability the panel will need in service.

The weathering check is the one that separates an indoor panel from an exterior sign, and it should be chosen to match the exposure the finished panel will see. A sign that will face the weather out of doors needs the accelerated exposure test, while an interior display may need only the humidity and handling checks. Matching the test to the exposure is what keeps the qualification from either missing the real risk or adding cost that the job does not require.

How do you keep a repeat signage program consistent?

With a fixed panel source and an approved recipe.

A repeat program is reproduced from the panel source, the coating and the recorded process, because a change of panel batch changes the result more than a change of setting.

The published guidance for repeat panel programs is to build the job around an approved panel source, cleaning method, artwork file, ink-layer recipe and acceptance procedure. Those five items are the program. Where any of them changes, the qualification is repeated, which is why the panel supplier and batch belong in the record rather than in a purchasing file.

Two published figures help plan the program. The platform comparison in this range covers 2100 by 3000 millimetres and 3200 by 2000 millimetres at different production levels, so the panel size and the machine size are matched deliberately rather than by default. And the published ink cost of roughly 0.80 to 1.20 US dollars per square metre turns the colour and white decisions into a cost per sign, which is the figure that decides how the program is priced. Process practice for industrial print is published by the industry bodies in the field (PRINTING United Alliance), and chemical and material obligations follow the applicable regulations (REACH).

What the decision comes down to

An aluminium composite panel is qualified from its coating, not its alloy. Record the panel and the print face, strip and inspect the film, justify any primer with a test, plan the white layer in the file, and decide the edge treatment before the job is cut.

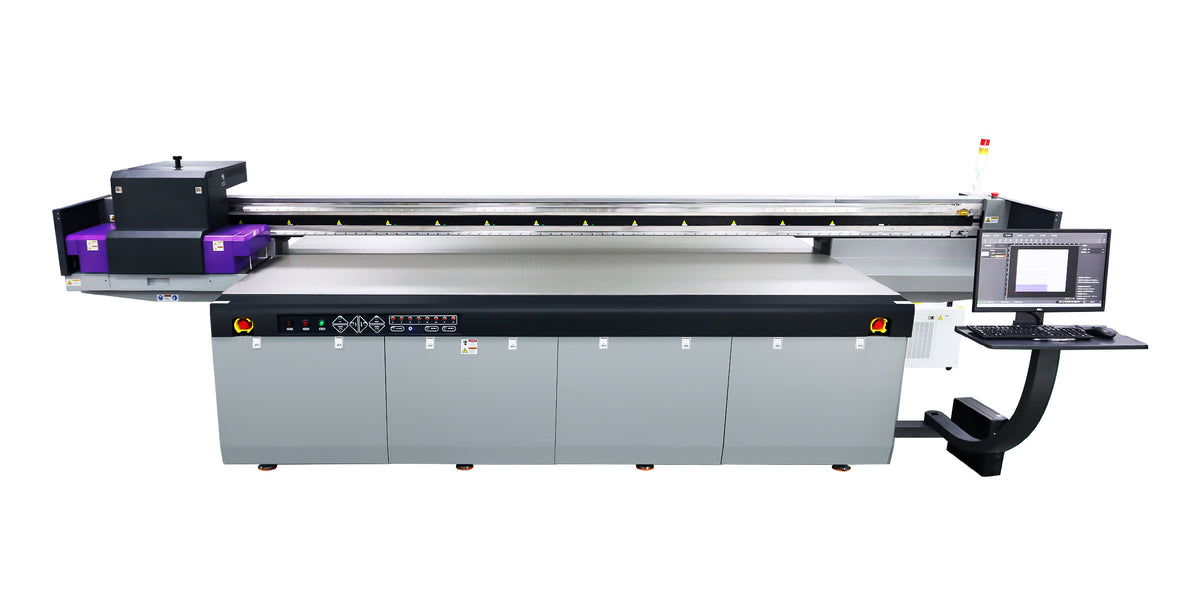

The published metal and panel qualifications for this range sit with the metal and aluminium collection and the AJ3220EX page, the material workflow is covered in the guide to UV printing on metal and aluminium, and the signage production route is set out in the article on starting a signage production line.
