AJ3220EX UV Flatbed Printer
  • Overview
  • Basics
  • Specifications
  • Honours
  • FAQs

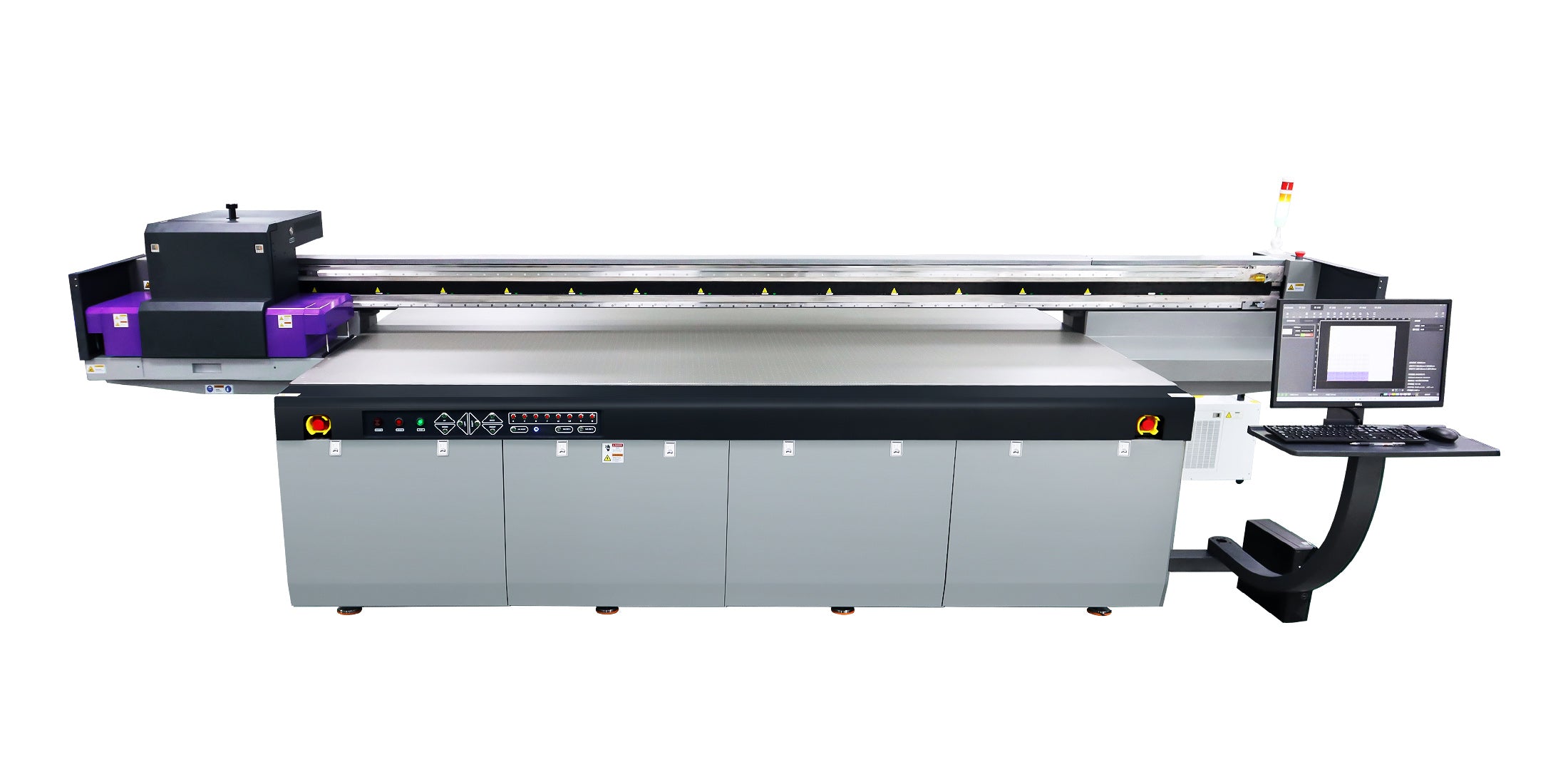

AJ3220EX UV Flatbed Printer
Andresjet
Andresjet

Engineered for high-intensity, high-speed production, the AJ3220EX features a massive 3.2m x 2.0m (10.5ft x 6.5ft) printing area. Its robust frame and 16 industrial RICOH® printheads deliver the power and endurance to meet your facility's most demanding schedules.

  • Ink Efficiency: 8-level grayscale saves up to 30% on ink.
  • Smart Protection: An integrated anti-collision system safeguards printheads.
  • Flawless Output: A built-in anti-static bar ensures cleaner prints.
  • Unmatched Reliability: Built with premium components for lasting durability.
Andresjet
Andresjet
2
Year

2 Years Warranty

Andresjet
Andresjet
3200*2000
mm

Max Printing Size: 3200mm*2000mm (10.5ft * 6.5ft)

Andresjet
Andresjet
154
sqm/hr

Up to 154 sqm/hr Printing Speed

Andresjet
Andresjet
Free
Flatbed

Filed Support Free of Charge

Why Choose the AJ3220EX-16H

The AJ3220EX-16H features the industry's largest standardized flatbed at 3.2m x 2.0m, handling global material standards at original sizes without waste. With 16 print heads delivering up to 154.3 m²/h, it's engineered for high-volume production and urgent delivery demands.

Andresjet
Andresjet

Magnetic Levitation (MagLev) Linear Motor

Andresjet
Andresjet

Dual 1500W Vacuum Blowers (2 HP)

Andresjet
Andresjet

Tapered-Hole Vacuum Flatbed Design

Andresjet
Andresjet

THK LM Guides

Andresjet
Andresjet
Andresjet
Andresjet
Andresjet
Andresjet
Andresjet
Andresjet

Technical Specifications

Print Technology

Ricoh GEN5 Industrial Inkjet

Print Head Configuration

16 heads (High-speed production optimized)

Print Resolution

363×300 dpi, 726×600 dpi, 726×900 dpi, 726×1200 dpi

Print Modes

Uni-directional and Bi-directional

Color Configuration

Extended 7-color system: CMYK + LC + LM + W V

Production Speed

Production Mode (4-Color Throughput)

Draft Mode 154.3 m²/h

Standard Production 111.5 m²/h

High-Quality Mode 89.6 m²/h

Flatbed

Hard-anodized aluminum with 4-zone vacuum system

Maximum Print Area

3200 × 2000 mm (126" × 78.7")

Media Thickness Range

1-100 mm (0.04"-3.94")

Maximum Media Weight

50 kg/m²

RIP Software

RIIN Print or PhotoPrint

Color Management

ICC-based color profiles, curves, and density adjustment

Supported File Formats

TIFF, JPEG, EPS, PDF, and more

Data Transmission

High-speed fiber optic interface

Drive System

AC high-precision servo motors

Power Requirements

AC 220V ±5%, 50Hz, >20A

Machine Dimensions (L×W×H)

5272 × 2842 × 1390 mm (207.6" × 111.9" × 54.7")

Net Weight

1850 kg (4078 lb)

Our Qualifications

CE Certified

Regulatory Compliance Mark

UK Conformity Assessed

Canadian Standards Association (CSA) Certification

Frequently asked Question

If you have any further inquiries, please don't hesitate to contact our sales team.

What types of materials can the Andresjet printer print on?

This is one of the best features of our technology! The Andresjet UV flatbed printer is incredibly versatile and can print directly onto a wide range of rigid and flexible materials, including:

  • PVC Board, ABS Board, Foam Board and Sintra
  • Acrylic and Plexiglass
  • Wood, MDF, and Plywood
  • Glass and Ceramic Tiles
  • Metals (like aluminum, brass, and steel)
  • Leather and Faux Leather
  • Phone Cases, Pens, and other promotional items

For non-porous materials like glass and metal, we recommend using a special primer before printing to ensure the best possible adhesion. We can provide you with the correct primer and demonstrate the simple application process.

What is the printing cost per square meter/foot?

This is a crucial question for calculating your return on investment. The cost varies depending on color saturation and print resolution, but we can give you a very reliable estimate.

On average, the ink cost for a full-color print is approximately $0.80 - $1.20 per square meter (/$0.07 - $0.11 per square foot).

To give you a precise calculation for your specific products, our team at Andresjet can run a test print of your file through our software, which will calculate the exact ink consumption and cost.

How durable is the print? Is it scratch-proof and waterproof?

The UV-cured ink used in our Andresjet printers is inherently durable. Once cured by the built-in UV LED lamps, the ink forms a solid, water-resistant layer on the material's surface.

· Waterproof: Yes, the prints are waterproof and suitable for most indoor and outdoor applications.

· Scratch Resistance: The prints have good resistance to general handling and scuffs. For high-wear surfaces or extreme conditions, a topcoat or lamination can be applied for maximum durability. We can test the adhesion on your specific material so you can see the results for yourself.

· Outdoor Lifespan: For outdoor signage, our high-quality UV inks are rated to last for 3-5 years without significant fading, depending on the level of sun exposure.

Can this machine print with 3D texture (embossing) and a glossy finish?

Absolutely! This is a key advantage of Andresjet UV technology.

· 3D Embossed Effect: We achieve this by printing multiple layers of white ink or color ink, creating a raised, tactile effect that you can feel. You can control the height of the emboss directly in the software.

· Varnish (Glossy Finish): Our printers are equipped with a channel for clear varnish. You can apply it to the entire surface for a high-gloss look or use it selectively (spot varnish) to make specific parts of your design.

We have many stunning samples to show you what’s possible!

What is the warranty policy, and what does it cover?

Andresjet stands behind the quality of our machines. We offer a comprehensive 2-year warranty on the entire printer. This covers all non-consumable mechanical and electrical parts, including motors, motherboards, drivers, and sensors.

Please note that consumable parts, which are subject to wear and tear from normal use, are not covered under the warranty. This includes ink, ink tubes, filters, and—most importantly—the printheads. We provide thorough training on daily maintenance to help you maximize the life of these essential components.

If my machine has a problem, what kind of after-sales support do you offer?

Excellent and reliable support is a cornerstone of the Andresjet promise. Our support process is designed to get you back up and running as quickly as possible:

1. Remote Support: Most issues (over 80%) can be solved quickly via remote support. Our technical team is available during business hours from Monday to Saturday and can guide you through video calls (WhatsApp, Zoom, etc.) and remote desktop software.

2. On-site Service: If the issue cannot be resolved remotely, we will dispatch a certified technician to your location. Our target response time for dispatching a technician is within 48 hours. We have technicians based in Thailand, India, Bangladesh, Vietnam, South Europe and USA.

Do I have to use Andresjet's ink? What is the cost and lifespan of the printheads?

This is an important question about long-term operational costs.

· Ink: We highly recommend using only official Andresjet-certified ink. Our inks are specifically formulated to work with our machines' ink systems and color profiles. Using third-party inks can cause printhead clogging, damage the ink system, and will void your warranty.

· Printheads: The printheads are the most critical and expensive consumable part. With proper use and daily maintenance, a printhead has a typical lifespan of 1-3 years. The current market price for a replacement printhead is approximately $1,900, but this can fluctuate. We will train your team on the essential maintenance procedures to ensure you get the longest possible life from your investment.
