The printhead is the most expensive consumable on a flatbed printer and the one buyers think about least before purchase. It is excluded from warranty cover, its life is set by how the machine is run rather than by how hard it is run, and when one fails the cost is as much the realignment time as the part itself.

This guide covers why heads sit outside warranty, what actually determines their life, how a failing head presents itself, what has to happen when one is replaced, and how a buyer should plan spares and record replacement so that the machine stays predictable over years of production.

Why are printheads excluded from the warranty?

Because they wear in normal use, so they are consumables.

The published warranty covers non-consumable mechanical and electrical parts, and excludes ink, ink tubes, filters and printheads as items subject to wear in normal use.

The published terms are specific about the split: motors, motherboards, drivers and sensors are covered by the two-year warranty, while ink, ink tubes, filters and printheads are not. The stated reason is that these parts are subject to wear, and the published response is that training on daily maintenance is provided to help maximise their life.

That is a normal position in this industry, and it is not a reason to avoid a supplier. It is a reason to treat head care as a cost line during the purchase decision rather than as a service complaint afterwards. A buyer who understands that the heads are the operator's responsibility makes a different choice about training, about who runs the machine, and about how many heads the configuration actually needs.

What determines how long a printhead lasts?

Ink quality, capping, filtration and idle handling.

Head life is set by what reaches the nozzles and how they are protected between jobs: filtered ink, a clean capping routine, and correct parking when the machine is idle.

Three mechanisms account for most head failures. Contamination, where pigment that has settled or agglomerated reaches the nozzle and cannot be purged out. Drying, where ink left exposed at the nozzle forms a film that hardens and blocks the channel. And mechanical wear, which accumulates slowly through the life of the head and is influenced by how often the machine cleans and wipes rather than by how many square metres it prints.

All three are influenced by maintenance rather than by workload. A machine that runs two shifts a day with disciplined capping and clean filtration will typically keep a head set far longer than one that runs one shift a week and sits idle for days with the heads uncapped. Idle time is the variable buyers underestimate, because a machine that is not printing is still ageing its ink.

How does ink quality affect the head?

Filtered, stable ink is what keeps nozzles firing.

Pigment that settles or agglomerates is a common cause of a nozzle that will not recover, which is why filtration and negative pressure are published as protectors of the printhead.

The published ink delivery design across this range uses dual negative pressure for both colour and white channels, described as reducing ink purge and stabilising the meniscus when one channel is heavily loaded. Filtration protects the head from larger particles, and the combination is what makes a machine recoverable after a weekend rather than requiring a service visit.

Ink choice matters alongside delivery. The published ink series differ by model, with Eco-Print 100 and 200 listed for the compact platform, Eco-Print 100 and 200 for the AJ3220G/R with a 300 series also listed, and LED UV ink on the cylinder platform. Inks are formulated for a printhead family and a curing system, and substituting an ink that was not specified for the machine is one of the few ways to shorten head life quickly and without warning.

What maintenance protects a head set?

Daily capping, clean wiping and prompt waste handling.

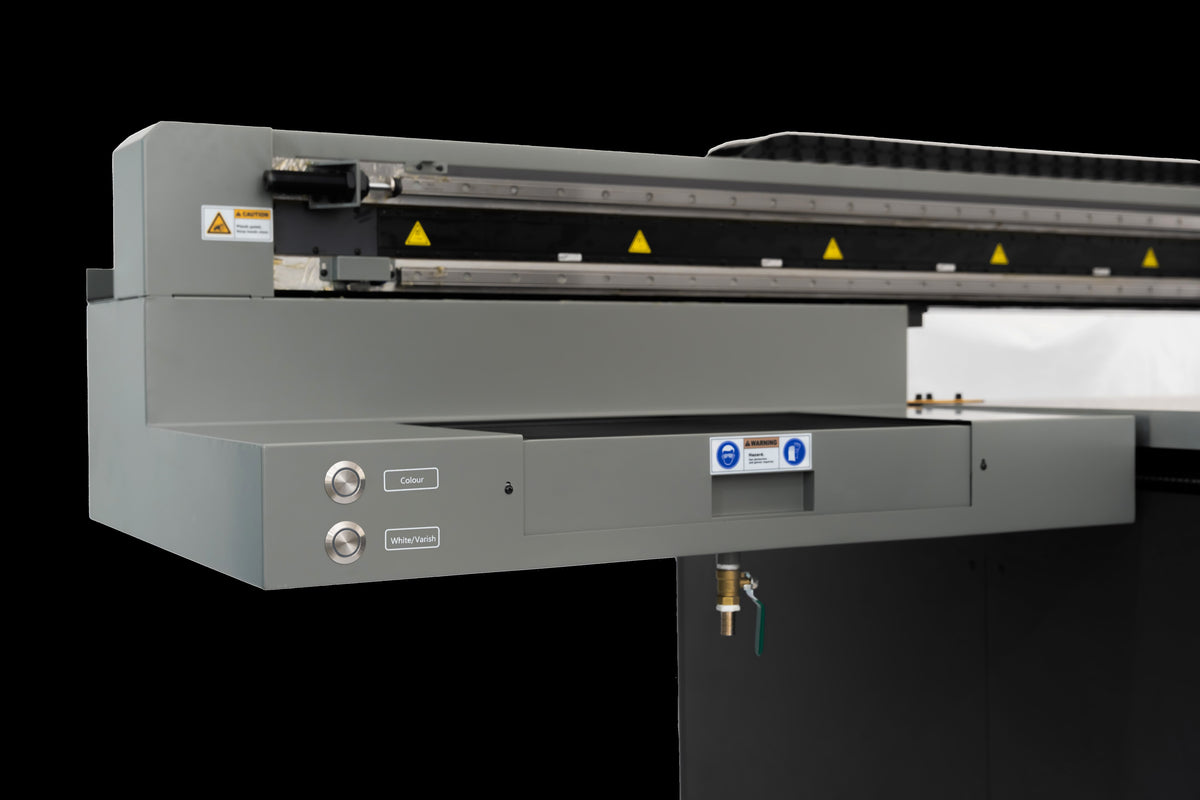

The AJ2130EX is published with a redesigned capping and wiping system, and the AJ3220G/R with dual negative pressure intended to reduce ink purge and stabilise the meniscus.

The routine that protects heads is short and repetitive. Cap the machine whenever it is not printing. Keep the wiping element clean and undamaged, because a worn wiper leaves a film that the first pass of the next job has to clear. Empty and inspect the waste system on schedule, since ink that sits in a full collector is a sign that other maintenance has slipped. And follow the daily maintenance training that is provided with the machine, because it was written around the specific components fitted to that configuration.

Printhead protection is also a hardware question at the point of specification. The AJ3220EX is published with an anti-collision system intended to protect the printheads, which matters on a machine that will be loaded with dense panels by operators working to a deadline. That kind of protection is cheaper than a head replacement and belongs in the configuration comparison.

How do you know a head is failing?

By a test pattern compared against a stored baseline.

A nozzle check read against the machine's recorded values shows whether a channel has drifted or dropped, which is more useful than a pass or fail judgement by eye.

Head failure is usually incremental. The first symptom is a channel that needs more purging than it used to, then a channel that recovers after cleaning but drops again within a shift, and only later a persistent dropout that no purge clears. A test pattern compared with the baseline recorded at installation shows that progression while it is still a maintenance question rather than a production one.

The commercial symptoms arrive in a predictable order. First, edge definition on fine text or line work. Second, white opacity, because a partially blocked white channel shows immediately as patchy coverage on a dark substrate. Third, banding in solid fills. By the time a customer notices banding, the machine has usually been compensating through extra purging for some weeks, which has also been consuming ink. Recording the test pattern result at a fixed interval is what makes the trend visible.

What happens when a head is replaced?

It is recalibrated, and the batch is recorded.

A replacement head changes drop behaviour on that channel, so the machine has to be realigned and the head generation and batch recorded against the serial number.

Three steps follow a replacement. Alignment, which restores the drop placement across the head group. Verification, by printing a test pattern against the stored baseline and confirming the machine is back within its tolerance. And recording, which should capture the head generation and batch fitted, the position, the measured values after alignment and the reason for the failure.

The recording step matters more than it appears. Across this range the head generations differ by model, with Ricoh GEN5 published on the AJ2130EX, AJ2130Ultra and AJ3220EX, Ricoh GEN6 on the AJ2130G/R and AJ2513G/R, and a piezo drop-on-demand industrial configuration on the AJ3220G/R. Where a machine has been running for years, a replacement ordered without the generation and batch on file is a guess, and mixing generations inside one machine changes drop behaviour in ways that are difficult to diagnose later.

How should spares be planned?

By wear-part consumption, not by a stock level.

The AJ360i is published with guaranteed parts availability for eight years, and a flatbed purchase should ask for the same commitment in writing.

The published commitment on the cylinder platform, together with 24/7 technical support and a three-hour response, is the level of specificity worth requesting on any machine in this category. A general statement of long-term support is not a procurement document; a part list with numbers, prices and lead times is.

Planning against consumption then becomes simple. Track how many wipers, filters and other wear items a quarter actually consumes, and order against that figure with a defined safety margin. The trend is also diagnostic: consumption that rises without a change in workload usually means the ink path or the capping system needs attention, and it is a cheaper signal than a failed head.

What should a replacement record contain?

Generation, batch, position, alignment values and reason.

Recording the head generation and batch against the machine serial number is what makes a future spare-part order unambiguous.

Two further checks belong in the same record. Adhesion and wear on the production substrate should be verified after any head change, because a channel that has been replaced can print at a slightly different ink volume, and the printed result is what the customer sees: adhesion is assessed with the tape method under ASTM D3359 and wear under ASTM D4060 (ASTM D3359, ASTM D4060). And the colour reference should be re-confirmed against the profile for that substrate (International Color Consortium). Process control practice for industrial print environments is covered by certification and research bodies in the field (Fogra), and waste ink from the purge cycle carries the usual handling obligations (US EPA).

What the decision comes down to

Printheads are a running cost that the operator controls. Keep the machine capped and the wiper clean, filter and specify the right ink, read the test pattern against a stored baseline, and record what was fitted when a head is replaced.

At the purchase stage, the two items worth insisting on are a parts commitment with numbers and lead times, and written confirmation of which head generation the machine carries. Support terms and the consumable position are published on the support page, with configuration detail on the AJ2130EX and AJ3220G/R pages.
