Most flatbed print defects are not print defects. A soft edge on a wide panel, a patchy white underbase near a corner, or an image that shifts slightly across a sheet are usually symptoms of the material moving a fraction of a millimetre while it is being printed. That is a holding problem, and it is solved before the file reaches the machine.

This guide covers why substrates move, how a zoned vacuum platform works, when vacuum is not enough, what static does to print quality, when a fixture is the better answer, what vision positioning changes, and the loading checks that prevent most of these defects.

Why do substrates move on a flatbed printer?

Because ink lands at a fixed height above the bed.

A flatbed prints at a fixed head height, so any change in how the material sits, whether from curl, debris or a soft core, changes the distance the ink travels.

Curl, edge lift, debris under the sheet, a warped panel and a soft core all produce variations on the same result: the ink lands slightly further from or closer to the surface than intended. The visible symptoms are a soft edge, a density shift across part of the image, or a white underbase that looks patchy in one area and solid in another.

That is why the published loading checks for material work are so specific. Across the material collections, the loading step asks for panel edges, flatness, bed clearance, safe gaps, printable area, vacuum hold-down and whether a positioning fixture or masking is needed. None of those items appear in a printer specification, and all of them affect what the machine can produce on a given sheet.

How does a zoned vacuum platform work?

By holding the sheet in independently controlled zones.

The published platform across this range is hard-anodised aluminium with a four-zone vacuum system, so only the relevant zones need to be open for a given sheet.

Zone control changes two things in production. First, small parts can be held without masking the entire bed, which reduces changeover time on nested work and on mixed batches where a few small components sit alongside a larger panel. Second, a narrow or slightly warped panel can be held without lifting at the edges, because the operator can select the zones that actually sit under the material rather than pulling vacuum through open areas that are doing nothing.

The published designs differ in emphasis across the range. The AJ2513G/R is specified with a four-zone sectional control platform, the AJ2130Ultra with a four-zone high-performance vacuum system, and the AJ3220EX with a tapered-hole vacuum flatbed design together with dual 1500W vacuum blowers. Those differences matter on light or permeable materials, where the vacuum has to overcome leakage through the sheet rather than only through the bed.

When does vacuum alone fail to hold a substrate?

When the sheet cannot seal, or cannot sit flat.

Fluted board leaks vacuum through open channels, foam board can be crushed by too much hold-down, and a warped panel cannot be flattened by suction alone.

Three material behaviours account for most failures. Fluted polypropylene is stiff along the flutes and flexible across them, so hold-down depends on how the sheet is placed and whether the flute edges are sealed or masked. Paper-faced foam board has a soft core that deforms under concentrated load, which is why the published guidance for that material warns against crushing the core and treats a bowed sheet as unprintable rather than merely inconvenient. And dense materials such as stone or thick metal concentrate load rather than conforming to the bed, so support and safe gaps matter more than vacuum strength.

The published position on damaged sheets is worth repeating because it is a safety instruction as well as a quality one: a sheet that cannot remain safely flat, or that has raised edges inside the carriage path, should be separated rather than forced flat. Stronger vacuum is not a substitute for a suitable board.

Why does static matter for print quality?

It attracts dust between cleaning and printing.

A charged acrylic or fluted sheet pulls dust across its whole surface after cleaning, which is why some configurations publish an external ionizer bar or an anti-static bar.

Static is the defect source that operators cannot see. A sheet is cleaned, placed on the bed, and by the time the first pass begins, dust has been drawn back onto the surface by the charge. On a transparent material the result is visible from the viewing side; on a white underbase it appears as patchy coverage; on a dark board it shows as small light specks.

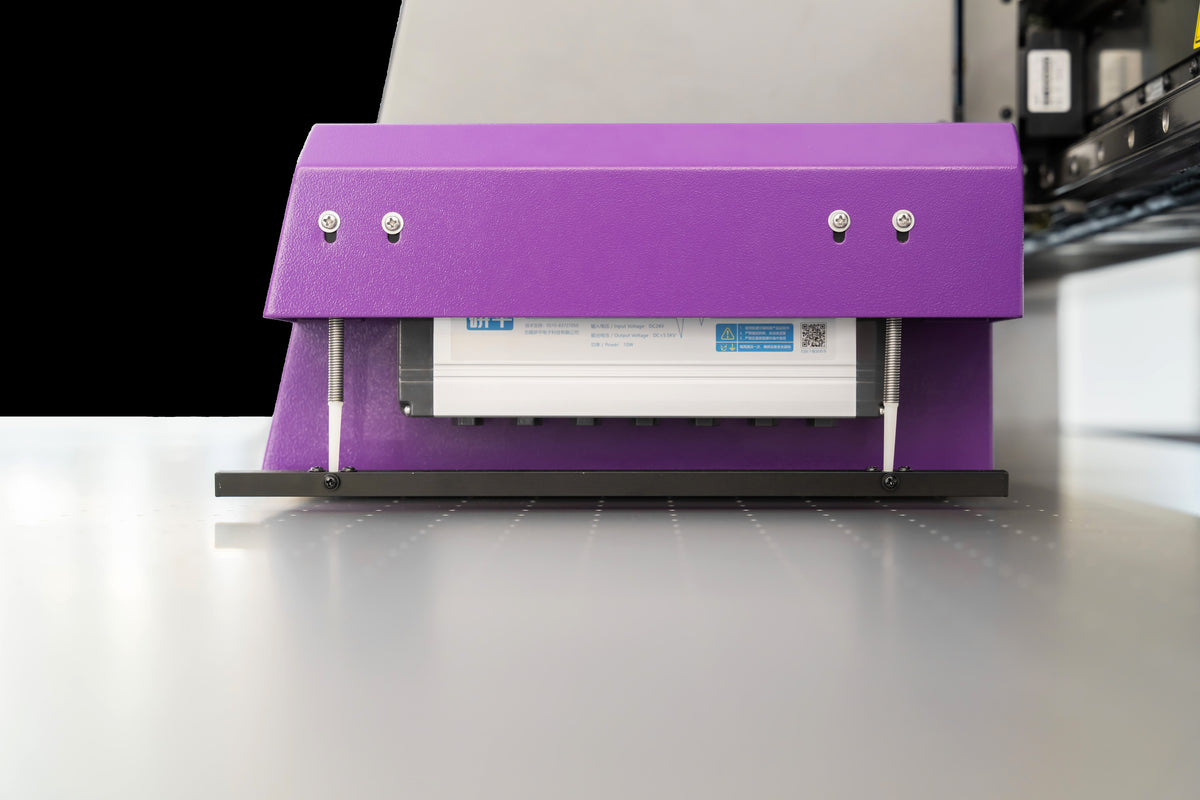

The published hardware responses are an external ionizer bar on the AJ2130Ultra and an anti-static bar on the AJ3220EX. Where the configuration does not include that hardware, the equivalent control is procedural: keep sheets covered, handle them by the edges, use a lint-free antistatic routine before loading, and record the method used for the approved sample so it can be repeated. The published guidance for corrugated plastic signage describes exactly that sequence, including the use of ionizing or antistatic equipment where the environment requires it.

When is a fixture better than vacuum?

When parts are small, irregular or pre-formed.

A fixture defines how each part is located, supported and identified, which makes a batch repeatable rather than dependent on operator judgement.

Fixtures earn their cost in three situations. Small parts, where the pocket positions each item so that a whole tray can be printed in one cycle. Irregular shapes, where the fixture provides the datum the geometry does not. And pre-formed components, where the part has no flat face to seal against the bed and support has to come from below or from the sides.

The published design language for small-part work treats the fixture as part of the artwork. The guidance for medals, coins and buttons asks for a fixture drawing or sample tray together with pocket pitch, part orientation, datum and loading pattern, because the position of the design relative to the part is a fixture decision as much as a file decision. That is also why the same guidance insists on a position-to-file matrix: with several pockets filled with different blanks, the fixture and the job ticket together are the control system.

What does vision positioning change?

It locates parts by camera instead of by an edge.

The compact platform is published with an optional wide-beam CCD scanning camera and a 0.01 mm positioning tolerance, which suits pre-cut parts placed directly on the bed.

Camera positioning changes the loading routine rather than the printing. Instead of requiring each blank to be placed against a pocket or a stop, the system scans the bed, identifies each item's position and outline, and prints accordingly. On short runs of pre-cut parts with several designs, that removes the jig-making step that would otherwise precede the job.

The published guidance is careful about when the option is worth having: it depends on part geometry, orientation, artwork variation, tray repeatability and the inspection standard, and the recommendation is to review the actual fixture layout against the camera-assisted route rather than assuming either one suits every job. In practice, a stable product family usually suits a fixture, while a varied mix of pre-cut parts suits vision positioning.

How should masking and zone selection be planned?

By matching open zones to the sheet, not the bed.

Masking and zone selection should follow the shape being held, because vacuum lost through unused zones reduces hold-down where the sheet needs it most.

Three rules make the plan work. Open only the zones covered by the material, and mask the rest if the sheet is small relative to the bed. Group parts so that they share zones rather than spanning several, because a part that straddles an open zone and a closed one is held unevenly. And review the plan with the loading method, since a fixture that covers part of the vacuum field changes what the zones can do.

On mixed-substrate production the plan should be recorded per material rather than per job. The published workflow across the material collections treats loading as a defined step with its own checks, and the reason is that a routine that works for a rigid PVC panel does not transfer to a fluted sheet, a soft foam board or a heavy stone slab.

What should be checked before every load?

Flatness, edges, debris and clearance.

The published loading checks are sheet edges, flatness, bed clearance, safe gaps, printable area, vacuum hold-down and whether fixture or masking is required.

Two supporting habits belong with the checklist. Check adhesion on the actual material when a new substrate is introduced, since hold-down and adhesion both depend on the surface: adhesion is assessed with the tape method under ASTM D3359 and wear under ASTM D4060 (ASTM D3359, ASTM D4060). And keep the print area as a process area, with extraction and housekeeping appropriate to the materials used, since dust is the common cause of both hold-down and adhesion problems (HSE). Process control practice for industrial print environments is covered by certification and research bodies in the field (Fogra), and the wider trade guidance on print operations helps when the holding method is compared with a different production route (PRINTING United Alliance).

What the decision comes down to

Holding is a material problem before it is a machine problem. Match open vacuum zones to the sheet, control static before loading, use a fixture where geometry demands one, and treat flatness, edges and debris as pre-flight checks rather than as things to notice during a run.

Where the machine is still being chosen, the relevant published differences are the vacuum zone design, the vacuum capacity and whether vision positioning is part of the configuration. Those are described on the AJ3220EX, AJ2130Ultra and AJ1206 pages, with material-specific loading guidance in the corrugated plastic collection.
