An automotive interior part is a printed product with a specification attached. It arrives already coated, textured and coloured, and it will be judged by a buyer who tests rather than by a customer who looks. That combination makes the qualification route more important than the print settings.

This guide covers how to approach interior and trim work: why the part needs its own qualification route, how to check a coated or textured surface, what curves and recesses change, how white ink and colour are planned on dark parts, which durability tests are usually asked for, how to prove a production-intent part, how traceability works, and what the batch record should contain.

Why does an interior part need a qualification route?

Because the surface is engineered, not raw.

An interior part arrives with a coating, a texture, a colour and often a class A finish, so the print has to be qualified against the part rather than the material name.

The published guidance for this range is explicit that a listed material is not automatically production-ready, and that surface condition, pretreatment, fixture strategy, ink adhesion and required durability have to be confirmed with representative parts. On an interior component that list is the whole job, because the part the printer receives is the result of somebody else's process, and that process is what the ink has to bond to.

The practical consequence is that the qualification is run on the production part rather than on a coupon. A coating applied at a moulder, a grain embossed into a surface and a colour matched to an interior palette are all part of the substrate, and a test panel of the same polymer without that treatment answers a different question.

How should a coated or textured surface be checked?

Record the coating, texture and batch first.

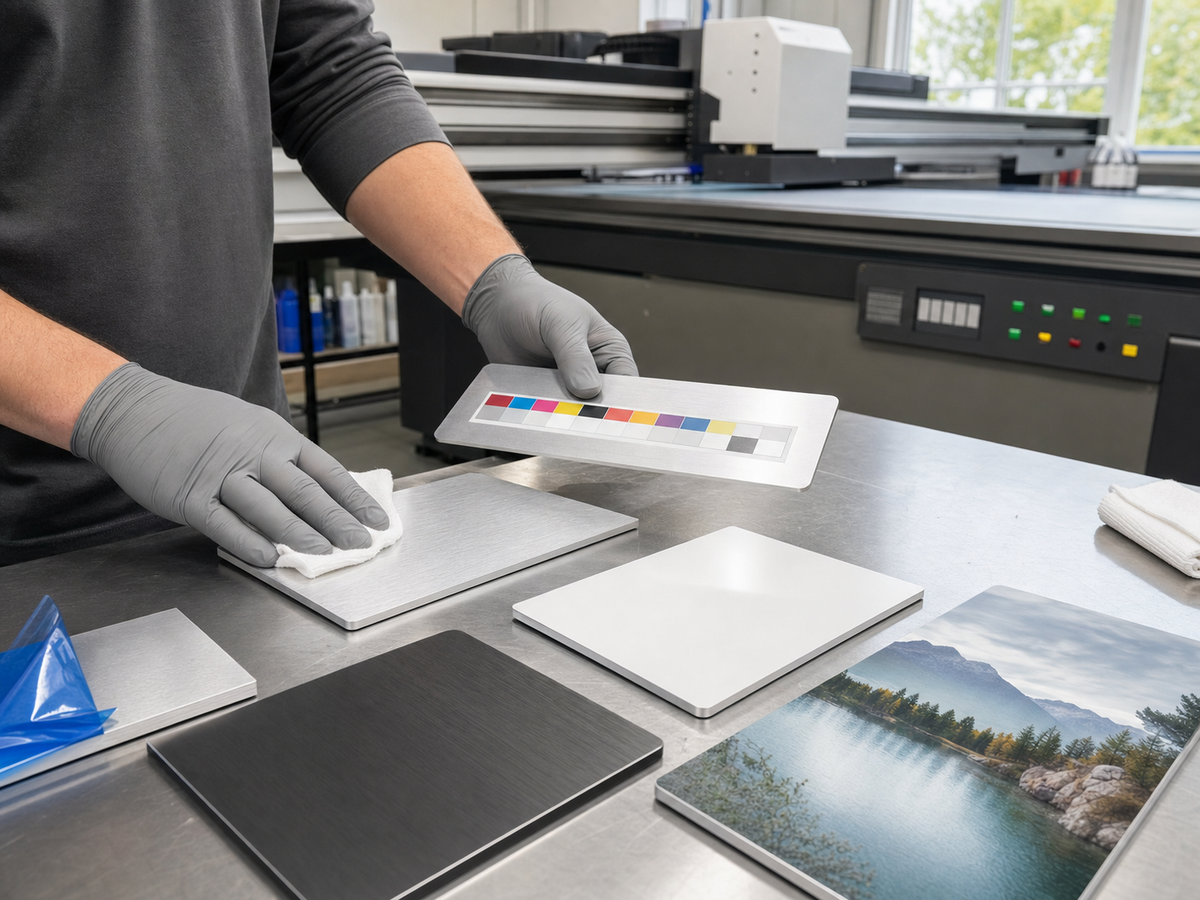

The published metal guidance asks for the coating or finish, supplier, batch and print face to be recorded and the surface to be cleaned before anything is printed.

Interior parts add two fields to that list. The first is the texture, because a grained or embossed surface changes how the ink sits and how the print reads at an angle. The second is the coating method, because a painted, a moulded-in-colour and a lacquered surface can respond differently even when the base polymer is the same.

The cleaning method belongs in the same record. Mould release, polish, handling oils and dust from the moulder can all sit on the surface, and the published approach is to control the surface and remove contamination rather than to rely on the ink to cope with it.

What do curves and recesses change?

The clearance, the focus and the artwork.

A curved or recessed part changes the head-to-surface distance across the print and creates no-print zones, so the geometry is mapped before the artwork is approved.

Flatbed printing assumes a reasonably constant working distance, and a curved or recessed interior part breaks that assumption. The published guidance for panel work asks for orientation, datum, fixture method and head clearance to be confirmed on the real part, and for interior work the fixture is often what converts a curve into a series of printable zones.

Recesses carry a second risk, which is access. A deep recess can put the print head close to a wall of the part, so the head clearance has to be checked on the real geometry rather than inferred from the drawing. Where the part cannot be presented safely, the answer is usually a different print area or a different process rather than a deeper fixture.

How should white ink and colour be planned on dark parts?

As a controlled layer on the real part.

Most interior parts are dark, so the white layer decides whether the colour reads, and it should be compared on the actual coated part rather than on a test panel.

The published artwork guidance asks for white and varnish to be supplied as separate channels so that full, selective and spot effects can be controlled independently. On a dark interior component that separation is what allows a bright graphic and a subtle tone to sit on the same part, and it allows the white to be placed behind a legend without also placing it behind a background.

The viewing condition belongs in the approval. An interior part is seen in daylight through glass, in a cabin at night and at close range, and a colour that reads well under the bench lamp can look flat in the vehicle. The published guidance is to compare the options under the intended condition, and on this kind of work that is a design review rather than a printing one.

Which durability tests will be asked for?

Adhesion, abrasion, humidity and exposure.

A buyer usually names the conditions rather than the test, and the four families that map to interior service are adhesion, abrasion, humidity and accelerated exposure.

Each family has a published method that both sides can point to. Adhesion is assessed with the tape method under ASTM D3359, wear under ASTM D4060, humidity under ASTM D2247 and accelerated exposure under ASTM G154. The value of naming the method is that passing becomes a shared definition rather than an argument.

The chemical and material obligations for the inks and the substrate follow the applicable regulations (REACH), and occupational guidance for the workshop is published by the relevant authority (HSE printing). Where the printed part carries a regulatory or safety marking, that requirement belongs to the vehicle specification rather than to the printer, and it should be settled before the artwork is drawn.

How do you prove a production-intent part?

With a pilot batch on the real part.

A single sample shows what is possible; the published guidance is to run representative parts across the bed positions and repeat the cycle before capacity is promised.

The published checks for a batch are placement, colour, white opacity, varnish registration, surface defects and adhesion. Read together they test both the fixture and the material, which on interior work is where the risk actually sits: a part that prints correctly in the centre of the bed and fails at the edge is a holding problem rather than an ink problem.

The pilot batch is also the only honest basis for a capacity commitment. The published guidance for this range is to time the complete representative batch rather than the print, because loading, positioning, inspection and unloading sit inside the real cycle.

How should traceability work here?

Per part, per batch, per drawing revision.

The published panel workflow keeps the drawing, the file, the sample and the process record together, and an automotive part needs the same discipline.

Traceability on interior work has three layers. The part, identified by drawing and revision. The material, identified by supplier and batch. The process, identified by the approved settings and the fixture. A part that can be traced through all three can be defended; a part that cannot forces an investigation every time a question is asked.

The published guidance for industrial panels asks for the approved drawing, the print file, the sample and the process record to be retained together, and it warns against scaling one generic file across parts with different features. That warning is written for control panels and it applies directly to interior trim, where a change of model year can move a cut-out by a few millimetres.

What should the batch record contain?

Settings, material, fixture and the result.

The published record covers the artwork version, the settings, the substrate and pretreatment, the fixture and the inspection result, which is the set a buyer will ask to see.

Two further fields are worth adding on interior work. The environment at the time of printing, because this range is published to run between 20 and 30 degrees Celsius and 40 to 60 percent relative humidity and a shop outside that band will see variation. And the cleaning method used before printing, because it is the step most likely to be performed differently by a different operator on a different shift.

The published approach is to keep the approved sample with the record, so a later order is checked against the same physical piece. Process practice for industrial print is published by the bodies in the field (PRINTING United Alliance).

What the decision comes down to

Interior and trim work is a qualification exercise with a production run attached. Record the coating, the texture and the batch, map the curves and recesses, decide the white layer on the real part, name the durability tests before the sample, and keep the drawing, file and record together.
