A small industrial flatbed exists for a specific kind of work: parts that are too valuable for a bench printer and too varied for a dedicated production line. Nameplates, control panels, prototypes and short-run components all share the same profile, which is that the setup matters more than the speed and the acceptance standard is written down.

This guide covers what makes a compact platform industrial rather than desktop, which parts suit it, how a part is qualified before production, what controlled loading involves, how to check batch consistency, how durability is approved, what records keep short-run work repeatable, and when the work should move to a wider machine.

What makes a flatbed industrial rather than desktop?

The build, the duty cycle and the workflow.

The published position is that the compact platform is a floor-standing production system with a 400 kilogram net weight and an AC 220V supply.

The published answer to the tier question is unusually direct: it is built as a floor-standing production system, not an office appliance, and it needs a defined production area. That is the practical boundary. A machine with a 400 kilogram net weight, an AC 220V supply and a bed designed for controlled loading belongs to a floor, a power plan and a trained operator, whatever its bed size happens to be.

The second marker is the duty cycle. An industrial platform is expected to run production shifts and to be maintained between them, which is why the published material includes routine ink-system care, a maintenance routine and a consumables plan. A desktop device in the same bed size would not carry those expectations, and it would not carry the support model either.

Which parts suit a small industrial platform?

Nameplates, prototypes and short-run components.

The published applications include short runs of coated metal, plastic and other rigid identification components, and graphic prototypes and sample panels produced without conventional plates.

The common thread is that each part carries a standard. An identification part has to match a drawing, a prototype has to demonstrate the finished appearance, and a control panel has to fit an assembly. Those standards are what make the platform a production tool rather than a printing device, because a part is only accepted when it meets the agreed criterion.

The published caution applies to every one of them: a listed material is not automatically production-ready, and surface condition, pretreatment, fixture strategy, ink adhesion, required durability and the complete production cycle have to be confirmed with representative parts. Listing an application is a starting point rather than an approval.

How should a part be qualified before production?

By the part envelope, surface and acceptance test.

The published route asks for four groups of information so that printability, configuration and workflow can be evaluated against real production requirements rather than against a sample.

The four published groups are the part envelope and loading, covering dimensions, thickness, weight, flatness, printable area, quantity per bed and the proposed fixture or support method; the substrate and surface condition, covering material, coating, texture, prior treatment, contamination risk and any cleaning restrictions; the print and acceptance standard, covering artwork coverage, colour reference, white opacity, varnish areas, placement tolerance and the required adhesion or durability test; and the operating and site plan, covering the batch target, changeovers, inspection method, space, power and operator experience.

The value of the list is that it puts the acceptance standard before the print. A qualification with no agreed test produces an argument later, because appearance is not a criterion. The published approach is to define the required test first and then approve a representative printed sample against it.

What does controlled loading involve?

Fixtures, datum edges and part clearance.

The published approach is to combine controlled loading with suitable fixtures or optional CCD positioning according to part geometry and tolerance, and to confirm the method on the real part.

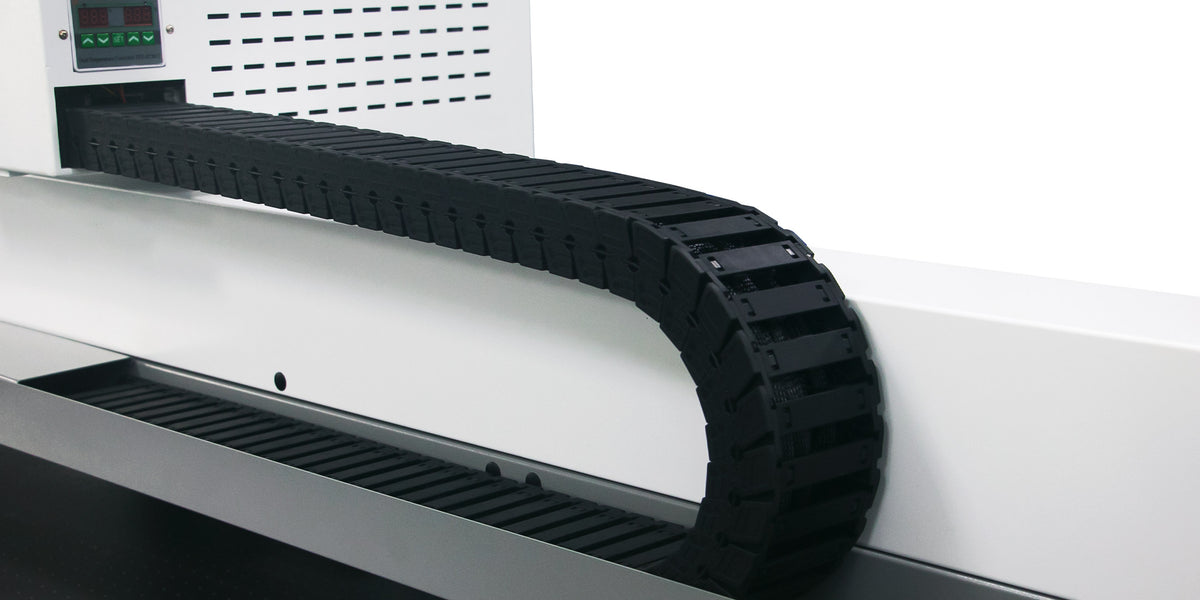

The compact platform is published with a positioning tolerance of 0.01 millimetres using dual Y-axis motors, an optional wide-beam CCD system for suitable pre-cut components, and a bed designed for controlled loading. Those capabilities support repeatability, but they do not replace a decision. The published guidance is to choose the positioning method from the part geometry and the tolerance, then confirm fixture height, clearance and datum on the actual part.

Physical loading limits belong in the same step. The published limits for the platform are a 1200 by 600 millimetre print area, 0 to 35 millimetres of media thickness and a maximum media weight of 36 kilograms, and the published workflow asks for dimensions, thickness, weight, flatness and support to be verified before a part is released to the bed. A part that fits the print area can still fail on mass or on clearance.

How should batch consistency be checked?

With a pilot batch across the bed positions.

The published guidance is to run representative parts across the intended bed positions and repeat the cycle, because a pilot batch is more informative than one sample.

The checks published for a batch are placement, colour, white opacity, varnish registration, surface defects and adhesion. Read together, they cover both the print and the process: placement and registration test the fixture and the file, while adhesion tests the material and the preparation. A batch that passes the first and fails the second is a chemistry problem rather than a machine problem.

The pilot batch also reveals the variation that a single sample hides. A part printed in the centre of the bed and a part printed at the edge can differ, and a cycle repeated with a fresh load can shift. The published approach is to run the batch, record the result, and release production only against the documented limits.

How does durability get approved?

By defining the test before approving a sample.

The published position is that durability depends on the substrate, coating, preparation, ink layers and real exposure, so the required test is defined first and approved on a representative part.

Durability is the requirement most often left vague, and the published guidance refuses the vagueness. A part that must resist handling and cleaning needs a test that measures handling and cleaning; a part that will be exposed to weather needs an exposure test. Adhesion is assessed with the tape method under ASTM D3359 and wear under ASTM D4060, which gives both sides a shared definition of passing.

The published caution is that production durability should not be inferred from appearance alone. A printed part can look perfect and still fail the first real test, which is why the sample is approved against its conditions of use rather than against a bench comparison. The chemical and material obligations for the inks and substrate follow the applicable regulations (REACH), occupational guidance for the workshop is published by the relevant authority (HSE printing), and process practice for industrial print is published by the industry bodies in the field (PRINTING United Alliance, UL).

What records keep short-run work repeatable?

The settings, the fixture, the material and the result.

The published process record covers the approved artwork version, the RIP and ink-layer settings, the substrate and pretreatment, the fixture or loading method, the bed position and the result.

For short-run work the record carries a double value, because a job may not repeat for months. The next order is reproduced from the file rather than from an operator’s memory, which is what makes a low-volume part profitable rather than a fresh experiment every time. The published approach is to keep the approved sample with its process record, so a later order is checked against the same physical piece.

Two fields matter more on industrial parts than on consumer work. The revision, because an identification part is only correct relative to the drawing it was built from, and the acceptance test result, because a part that carries a safety or regulatory function has to demonstrate compliance rather than appearance. The record and inspection discipline is set out in more detail in the guide to inspection and acceptance records.

When should the work move to a wider platform?

When the part or the mix outgrows the bed.

Move up a tier when the part envelope, the media weight or the throughput exceeds the published limits, or when larger panels join the mix and need a wide-format platform.

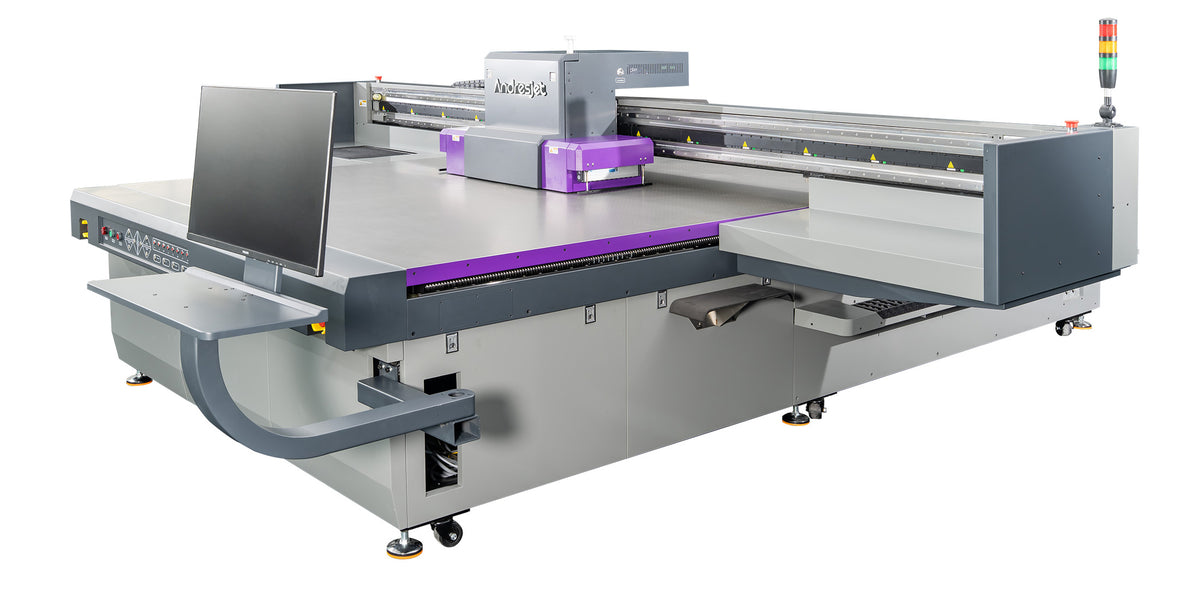

The published ladder is explicit. The compact platform covers a 1200 by 600 millimetre area, while the wide-format platforms in this range cover 2100 by 3000 millimetres and 3200 by 2000 millimetres at different production levels, with printhead counts from four expandable to eight and beyond. When a control panel becomes a full door panel, or when a prototype run becomes a short production batch, the tier changes with the work.

The decision should be made on the mix rather than on one job, which is the published guidance for standard sheet work as well: review the largest panel, the most frequent panel and the changeover pattern rather than selecting a machine around a single unusual part. The same discipline applies to industrial components, and it is what keeps a workshop from buying capacity it will not use.

What the decision comes down to

A small industrial flatbed is chosen for parts that carry a standard. Qualify the part envelope and surface, define the acceptance test before the sample, control the loading, run a pilot batch across the bed, and keep the record with the approved sample.

The published applications, limits and positioning options for this range sit with the small industrial collection and the AJ2130G/R page, the panel workflow is covered in the guide to industrial nameplates and control panels, and the acceptance discipline is set out in the article on inspection and acceptance records.
