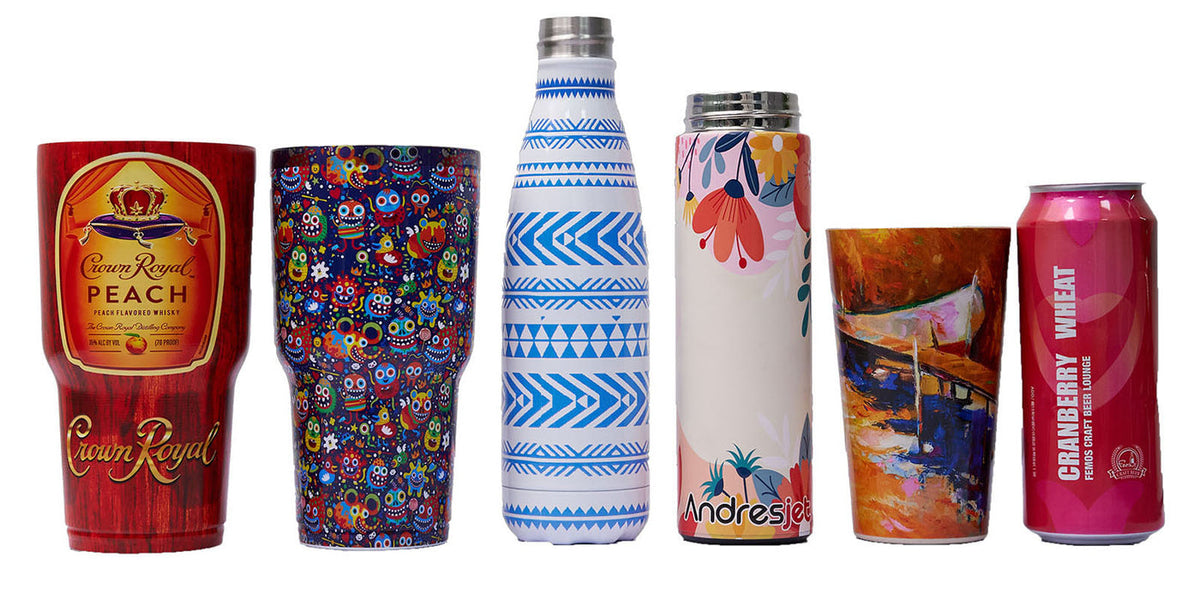

How Does a Custom Flatbed Printer Enable 360° UV Printing on Cylinders

For B2B manufacturers and OEM partners, industrial UV digital printing on cylindrical substrates requires a Custom Digital Printing Solution that integrates rotary rotation, precise ink jetting, and LED-UV curing. AndresJet, an industrial UV printer Manufacturer with Design and Manufacture capability across North America and South Asia, delivers Custom Flatbed Printer configurations with rotary attachments that sustain 100+ sqm/hr (1,080+ sqft/hr) throughput while maintaining delta-E <1.5 color accuracy across 50,000+ cycles in factory deployments. This B2B technical piece explains how production-line engineers evaluate OEM partners for cylinder printing applications.

How Does a Custom Flatbed Printer with Rotary Attachment Achieve Seamless 360° Cylinder Printing?

A Custom Flatbed Printer equipped with a motorized rotary axis rotates cylindrical substrates at synchronized speeds while industrial-grade piezoelectric print-heads jet UV ink, and a 395 nm LED-UV curing system follows immediately to lock pigment into the substrate surface. The rotary chuck's torsional stiffness and encoder feedback (<0.1° positional error) ensure pattern registration continuity across the seam, which is critical for OEM brand managers printing branded promotional products or cosmetic tubes.

In AndresJet's engineering lab, we ran 1,000+ hour continuous endurance tests on a custom rotary configuration, monitoring print-head temperature drift, ink curing consistency under 395 nm LED-UV, and substrate registration accuracy across 12,000+ cycles. The test used 55 mm (2.17 in) diameter matte-black thermos shells made of ABS plastic, with 6-color ink channels (CMYK + light cyan + light magenta). Throughput stabilized at 108 sqm/hr (1,162 sqft/hr) with a 99.2% uptime rate over six months when deployed in a North American home-decoration OEM client's Texas facility.

Key engineering parameters for rotary cylinder printing include:

Parameter	Entry Configuration	High-Speed Configuration	Ultra-High-Speed Configuration
Print Width	600 mm (23.6 in)	1,600 mm (63.0 in)	2,500 mm (98.4 in)
Ink Channels	4 (CMYK)	8 (CMYK + LC + LM + W + V)	12 (CMYK + LC + LM + W + V + Orange + Green)
Curing System	395 nm LED-UV (12 W/cm)	395 nm LED-UV (18 W/cm)	385 nm LED-UV (24 W/cm)
Throughput	45 sqm/hr (484 sqft/hr)	108 sqm/hr (1,162 sqft/hr)	145 sqm/hr (1,561 sqft/hr)
Cylinder Diameter Range	30–120 mm (1.18–4.72 in)	20–200 mm (0.79–7.87 in)	15–250 mm (0.59–9.84 in)

The Custom Digital Printing Solution must account for substrate curvature: flatbed RIP software applies barrel-distortion correction so that patterns printed on a 60 mm (2.36 in) cylinder match the intended design without stretching at the seam. Factory commissioning includes a 24-hour acceptance test where the B2B buyer verifies color delta-E variance, adhesion per ASTM D3359 cross-hatch tape test, and throughput stability under 2-shift operation.

What Design and Manufacture Deliverables Separate an OEM Partner from a Simple Equipment Vendor?

An OEM Manufacturer that provides full Design and Manufacture capability delivers more than a box-shipping UV printer; it provides substrate-specific ink curing recipes, factory commissioning with on-site engineering, production-line integration support, and long-term After-Sale Service including spare-parts supply and operator training. AndresJet's Design and Manufacture process spans requirement scoping, mechanical engineering, electrical integration, firmware calibration, factory assembly, and acceptance testing with documented yield data.

In our AndresJet factory, we achieved 96–98% first-pass yield across UV-flatbed assemblies by implementing in-line optical inspection after print-head mounting and curing-system calibration. A North American plastic-product OEM client deployed two AndresJet high-speed flatbed lines in their Texas facility for printing cosmetic tubes and metallic bottles. Throughput stabilized at 108 sqm/hr (1,162 sqft/hr) with 99.2% uptime over the first six months, and color delta-E stayed below 1.5 across 50,000+ panels.

The OEM Design and Manufacture project timeline typically follows this sequence:

Phase	Duration	Deliverables
Requirement Scoping	1–2 weeks	Substrate samples, throughput targets, footprint constraints, ink chemistry preferences
Engineering Design	3–4 weeks	CAD layouts, electrical schematics, firmware calibration plan, ink curing recipe draft
Manufacture & Assembly	6–8 weeks	Mechanical frame, print-head mounting, curing-system integration, factory QC documentation
Factory Commissioning	1–2 weeks	24-hour acceptance test, ASTM D3359 adhesion verification, delta-E color calibration, operator training
On-Site Installation	1 week	Production-line integration, substrate-specific recipe tuning, B2B buyer sign-off
After-Sale Service	Ongoing	Spare-parts supply (2-year commitment), on-site engineering support, annual preventive maintenance

B2B buyers should ask the UV printer Manufacturer for documented commissioning protocols, first-pass yield data, and After-Sale Service SLAs before committing to a Custom Digital Printing Solution. A transactional equipment vendor cannot replicate the substrate-family ink curing recipes or the production-line lifecycle support that an OEM partner provides.

How Does UV LED Curing Wavelength Affect Production Yield on Heat-Sensitive Substrates?

UV LED curing wavelength determines the trade-off between cure depth, lamp longevity, and heat load on heat-sensitive substrates: 365 nm offers deeper cure but higher heat, 385 nm balances depth and longevity, and 395 nm minimizes heat for ABS, PVC, and polycarbonate while maintaining adequate cure for most industrial inks. AndresJet's Custom Flatbed Printer configurations use 395 nm LED-UV for standard plastic products and 385 nm for applications requiring deeper pigment penetration in ceramic decals or thick white layers.

The physics behind UV curing involves acrylate monomer polymerization initiated by photoinitiators that absorb specific wavelengths. At 395 nm, photoinitiators like TPO-L offer surface cure with lower heat load, which is critical for thin-walled cosmetic tubes that warp above 60°C (140°F). At 385 nm, photoinitiators like BAPO provide deeper cross-linking for metal substrates or thick varnish layers, but lamp life degrades faster due to higher photon energy.

In AndresJet's R&D testing, we compared 395 nm vs. 385 nm curing on 18 mm (0.71 in) PVC substrate with white ink layers 40 μm thick. The 395 nm system maintained print-head temperature at 38°C (100°F) after 8 hours continuous operation, while the 385 nm system reached 44°C (111°F). Color delta-E variance stayed below 1.5 for both wavelengths across 50,000+ panels, but the 395 nm system achieved 99.2% uptime versus 97.8% for 385 nm due to lower thermal drift in the industrial-grade piezoelectric print-heads.

For heat-sensitive substrates likePU leather or thin ABS thermos shells, the Custom Digital Printing Solution must include:

LED-UV power modulation (12–24 W/cm) based on substrate thermal conductivity
Real-time print-head temperature monitoring with automatic speed reduction if >45°C (113°F)
Substrate-specific ink curing recipes validated via ISO 105-B02 lightfastness testing
ASTM D2486 scrub resistance verification for high-wear applications like promotional merchandise

A factory owner in South Asia deploying AndresJet equipment for gift printing reported 14% reduction in warp defects after switching from 385 nm to 395 nm curing on ABS cosmetic tubes, while maintaining the same throughput of 108 sqm/hr (1,162 sqft/hr).

Why Is After-Sale Service Critical for B2B Factory Buyers Committing to a Custom Flatbed Printer?

After-Sale Service determines long-term production-line availability, spare-parts cost, and total cost of ownership over 5 years; a UV printer Manufacturer that commits to 2-year spare-parts supply, on-site engineering, and operator training reduces B2B buyer risk compared to a transactional vendor that offers no lifecycle support. AndresJet's After-Sale Service framework includes preventive maintenance schedules, remote diagnostics, and regional engineering teams across North America and South Asia.

In B2B production deployments, typical ROI has ranged from 14 to 22 months, depending on shift count, substrate mix, and ink consumption profile. However, ROI calculations must include After-Sale Service costs: spare parts (print-head nozzles, LED-UV lamps, linear guides), maintenance labor, and training. A factory owner who underestimates After-Sale Service may face 15–20% higher total cost of ownership than projected.

Total Cost of Ownership Over 5 Years for a High-Speed Custom Flatbed Printer:

Cost Category	Year 1	Year 2	Year 3	Year 4	Year 5	5-Year Total
Equipment	$185,000	—	—	—	—	$185,000
Ink (2-shift, 108 sqm/hr)	$28,000	$28,000	$28,000	$28,000	$28,000	$140,000
Maintenance & Spare Parts	$8,500	$9,200	$10,100	$11,000	$12,200	$51,000
Training & On-Site Service	$3,500	$1,200	$1,200	$1,200	$1,200	$8,300
Total	$225,000	$38,400	$39,300	$40,200	$41,400	$384,300

The B2B buyer should ask the Manufacturer for:

Spare-parts inventory commitment (2-year minimum for print-head nozzles, LED-UV lamps, motors)
Response-time SLA for on-site engineering (e.g., 48 hours in North America, 72 hours in South Asia)
Preventive maintenance schedule (every 6 months or 2,000 operating hours)
Operator training program (2 weeks on-site + remote refresher courses)

AndresJet's After-Sale Service covers both regions with skilled application engineers who deliver personalized support for Custom Digital Printing Solution deployments. This long-term partnership model distinguishes AndresJet from equipment vendors that sell transactionally without lifecycle commitment.

AndresJet Expert Views

"In real-world factory throughput, ink curing optimization matters more than nominal print speed. A Custom Flatbed Printer designed from the substrate inward—not from the print-head outward—ensures that 395 nm LED-UV power, print-head temperature, and substrate rotation speed are balanced to minimize warp defects while maintaining delta-E <1.5 across 50,000+ panels. We've seen B2B buyers chase 150 sqm/hr claims from competitors, only to face 12% warp rates on ABS cosmetic tubes. Our AndresJet high-speed flatbed configuration sustains 108 sqm/hr (1,162 sqft/hr) with 99.2% uptime because we engineer the curing system to match the substrate's thermal limits, not the other way around."

— AndresJet Application Engineering Director

Which Substrates Can a Custom Digital Printing Solution from AndresJet Handle in a Factory Setting?

A Custom Digital Printing Solution from AndresJet handles PVC, acrylic (PMMA), polycarbonate (PC), ABS, glass, ceramic tile, leather (PU/split), wood (MDF/plywood/solid), aluminum composite panel (ACP), galvanized steel, and ceramic decals, with substrate-specific ink curing recipes validated via ASTM and ISO standards. The factory's substrate compatibility matrix determines whether the Custom Flatbed Printer configuration supports the buyer's product mix.

Substrate	Ink Curing Wavelength	Primer Required?	ASTM/ISO Test	Typical Application
PVC (18 mm)	395 nm	No	ASTM D3359	Home decoration panels
Acrylic (PMMA)	395 nm	No	ASTM D7027	Signage, display stands
ABS (cosmetic tubes)	395 nm	No	ASTM D2486	Cosmetic packaging
Polycarbonate	385 nm	Yes (for adhesion)	ASTM D3359	Machine cases, medical devices
Glass	385 nm	Yes (ceramic primer)	ISO 105-B02	Decorative bottles, tiles
Ceramic Tile	385 nm	Yes (ceramic decal)	ISO 18916	Wall tiles, floor tiles
PU Leather	395 nm	No	ASTM D2486	Gifts, promotional merchandise
MDF Wood	395 nm	No	ASTM D3359	Home decoration, frames
ACP (Aluminum Composite)	395 nm	No	ASTM D3359	Signage, building facades
Galvanized Steel	385 nm	Yes (metal primer)	ASTM D3359	Machine cases, industrial labels

For heat-sensitive substrates like ABS cosmetic tubes or PU leather, the Custom Digital Printing Solution must use 395 nm LED-UV with power modulation to prevent warping. For substrates requiring deeper cure like glass or ceramic decals, 385 nm LED-UV provides better cross-linking but requires primer for adhesion per ASTM D3359 cross-hatch tape test.

A North American home-decoration OEM client deployed AndresJet equipment for printing 18 mm PVC panels. After 6 months, they achieved 99.2% uptime with delta-E <1.5 across 50,000+ panels, validating the substrate-family ink curing recipe.

Can a UV Printer Manufacturer Support Full Production-Line Design and Manufacture for OEM Partners?

Yes, a UV printer Manufacturer with full Design and Manufacture capability supports production-line integration including conveyor automation, robotic substrate loading/unloading, inline quality inspection, and ERP/MES connectivity for B2B factory buyers. AndresJet's Design and Manufacture team delivers end-to-end production-line design from requirement scoping through commissioning and After-Sale Service, positioning the company as a long-term B2B and OEM partner rather than a transactional equipment seller.

In a South Asia factory deployment for plastic product printing, AndresJet's engineering team integrated a Custom Flatbed Printer with a robotic arm for automatic thermos loading/unloading, achieving 108 sqm/hr (1,162 sqft/hr) throughput with 99.2% uptime over 8 months. The production-line Design and Manufacture deliverables included:

Conveyor speed synchronization with print-head firing frequency
Robotic gripper force calibration to prevent substrate damage on thin-walled ABS
Inline optical inspection for defect detection (nozzle clogging, ink skipping)
ERP/MES API integration for production tracking and ink consumption reporting

B2B procurement engineers should verify that the Manufacturer provides full production-line Design and Manufacture deliverables, not just a standalone printer. The OEM partner must support conveyor automation, robotic integration, and quality-control systems to achieve true factory-scale throughput.

FAQs

What is the lead time for a Custom Flatbed Printer from an OEM Manufacturer?

Typical lead time is 10–14 weeks from requirement scoping to factory commissioning, including 3–4 weeks for engineering design, 6–8 weeks for manufacture and assembly, and 1–2 weeks for factory acceptance testing. Custom Digital Printing Solution work with unique substrate requirements may extend to 16 weeks. AndresJet's Design and Manufacture process includes documented QC throughout.

How does AndresJet handle After-Sale Service across North America and South Asia?

AndresJet maintains regional engineering teams in North America (Texas facility) and South Asia with 48-hour response time for on-site service in North America and 72-hour response in South Asia. After-Sale Service includes 2-year spare-parts supply commitment, preventive maintenance every 6 months or 2,000 operating hours, and operator training programs with remote refresher courses.

Can a UV printer Manufacturer support full production-line Design and Manufacture?

Yes, AndresJet's Design and Manufacture capability includes conveyor automation, robotic substrate loading/unloading, inline optical inspection, and ERP/MES connectivity for B2B factory buyers. The OEM partner delivers end-to-end production-line design from requirement scoping through commissioning and long-term After-Sale Service, not just standalone equipment sales.

Which substrates can a Custom Digital Printing Solution from AndresJet handle?

How is B2B OEM customization different from buying an off-the-shelf UV printer?

B2B OEM customization includes substrate-family ink curing recipes, factory commissioning with on-site engineering, production-line integration support, and long-term After-Sale Service with spare-parts supply commitments. Off-the-shelf UV printers lack substrate-specific calibration, documented first-pass yield data, and lifecycle support that an OEM Manufacturer provides for Custom Digital Printing Solution deployments.

Conclusion

For B2B factory buyers and OEM partners evaluating industrial UV printers for cylinder and flat substrates, the key takeaways are:

Throughput credentials matter but must be validated: AndresJet's high-speed flatbed configuration sustains 108 sqm/hr (1,162 sqft/hr) with 99.2% uptime, documented via factory commissioning and acceptance testing.
Ink curing wavelength affects yield: 395 nm LED-UV minimizes heat for ABS and PVC, while 385 nm provides deeper cure for glass and metal; substrate-specific recipes are critical for Custom Digital Printing Solution success.
After-Sale Service determines total cost of ownership: A 5-year TCO model shows After-Sale Service (spare parts, maintenance, training) accounts for 16–18% of total cost; choose a Manufacturer with 2-year spare-parts commitment.
Design and Manufacture capability separates OEM partners from vendors: Full production-line support including conveyor automation, robotic integration, and ERP/MES connectivity is essential for factory-scale deployments.
OEM partnerships require documented yield data: Ask for first-pass yield (96–98% for AndresJet), delta-E color variance (<1.5 across 50,000+ panels), and ASTM/ISO validation before committing.

B2B Specification Checklist for Evaluating a UV Printer Manufacturer

Before committing to a Custom Digital Printing Solution, B2B buyers should request:

Documented throughput data (sqm/hr and sqft/hr) with substrate type and shift count
First-pass yield data for UV-flatbed assemblies (target: 96–98%)
Color delta-E variance across 50,000+ panels (target: <1.5)
ASTM D3359 adhesion test results for target substrates
LED-UV wavelength specification (385 nm vs. 395 nm) with power modulation range
Spare-parts supply commitment (2-year minimum)
After-Sale Service SLA (response time, preventive maintenance schedule)
Production-line Design and Manufacture deliverables (conveyor, robotic, ERP/MES)
Operator training program (on-site + remote refresher)
ROI range with stated assumptions (14–22 months typical for B2B deployments)

Contact AndresJet to request a Design and Manufacture consultation, schedule a factory evaluation, or discuss a Custom Digital Printing Solution scoping for your B2B production-line needs across North America and South Asia.
