360 Degree Seamless Printing: How to Eliminate Overlap Lines in Cylinder Printing

Achieving true 360 degree seamless printing on cylindrical products is one of the most visible differentiators between standard packaging and premium, luxury-grade presentation. For brands working with UV cylinder printers, the biggest pain point is always the same: overlap lines where the start and end of the print meet, ruining an otherwise perfect surface.

check:Digital  Cylinder  Printer

This guide explains why overlap seams appear on cylinders, how to tune your process to eliminate them, and how the AJ360i’s advanced rotation algorithms ensure a perfect join on every pass, making it a preferred solution for high-end, wrap-around UV printing on bottles, tumblers, cosmetics containers, and other cylindrical substrates.

Why 360 Degree Seamless Printing Is So Difficult

In theory, 360 degree seamless printing on a cylinder sounds simple: you rotate the object once while the printhead jets ink, and the artwork wraps perfectly. In practice, mechanical tolerances, timing drift, and data errors cause a mismatch where the image begins and ends, creating visible overlap lines or tiny gaps.

On cylindrical and tapered products, even a 0.05 mm deviation between the rotation of the object and the linear motion of the printhead can produce:

• A vertical ghost line where ink overlaps by a fraction of a millimeter

• A bright, unprinted white line where the system leaves a gap

• Pattern breaks where tiles, gradients, or metallic effects fail to align

Because luxury brands demand full circumference consistency for metallic foils, fine typography, and micro-patterns, any seam on the cylinder becomes instantly visible under store lighting. The more complex the artwork, the more unforgiving the join zone becomes, especially on darker or high-gloss coatings where a slight change in ink thickness reflects differently.

Root Causes of Cylinder Printer Overlap Issues

To eliminate overlap lines in cylinder printing, it helps to isolate the main technical causes behind these seams. Most 360 degree seamless printing failures fall into a few categories.

First, rotational synchronization errors occur when the cylinder’s angular position and the carriage’s linear motion are not perfectly matched. If the rotary axis lags or leads by a small amount per revolution, the cumulative error shows up exactly where the print starts and ends. On typical rotary attachments, drive belts, stepper resolution, or microstepping inconsistencies can all lead to this misalignment.

Second, circumference miscalculation is a frequent source of cylinder printer overlap issues. Many workflows calculate wrap length using a nominal diameter that ignores coatings, varnish, or wall thickness variations. If the actual circumference differs by even tenths of a millimeter from the design assumption, the raster file will be too long or too short compared with the real surface.

Third, mechanical slippage and wobble can ruin seamless UV printing on cylinders. If the workpiece is not clamped securely or the mandrel has runout, the cylinder may not rotate at a constant radius. That causes slight speed changes at the surface, which translate into stretch or compression in the printed image, particularly near the seam zone.

Fourth, UV curing dynamics can exaggerate the seam. When the printer starts or stops jetting at the same angular position each revolution, the ink at that point may receive slightly different UV exposure, resulting in a gloss shift or density change. Even if the positional join is accurate, this curing imbalance makes a faint line visible.

How AJ360i Advanced Rotation Algorithms Remove Visible Seams

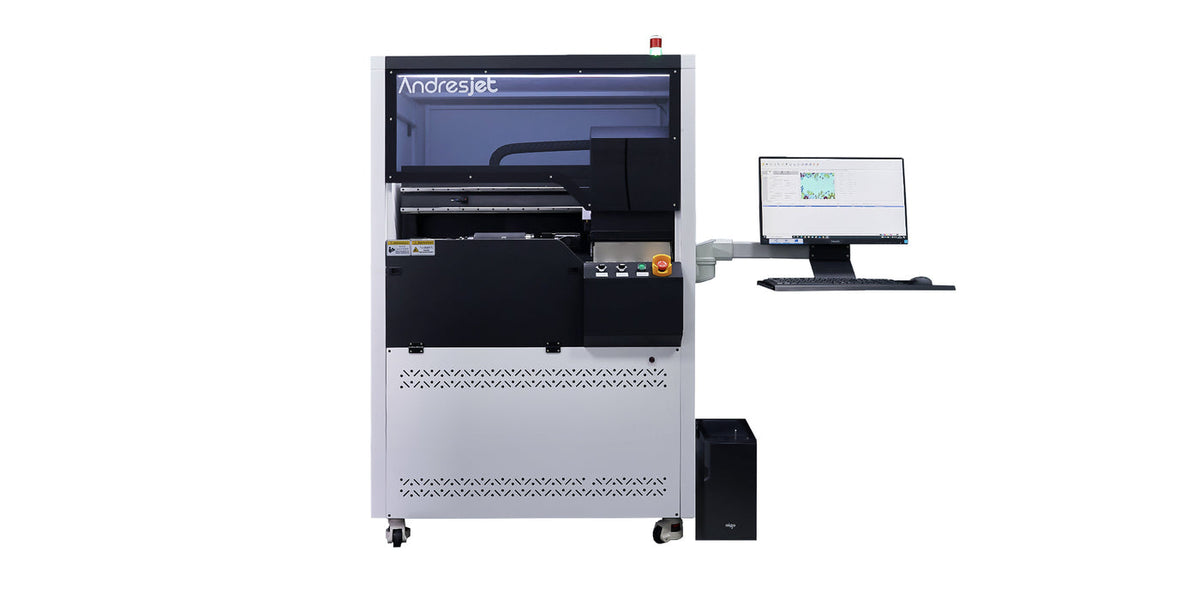

The AJ360i platform is engineered specifically to solve 360 degree seamless printing problems by tightly integrating mechanical design, motion control, and software-level rotation algorithms. Instead of treating the rotary axis as a simple add-on, it acts as a fully synchronized subsystem dedicated to cylindrical printing.

At the core is an advanced rotation control algorithm that builds a precise map between the cylinder’s circumference and the carriage’s travel distance. Before production, the AJ360i can run a calibration sequence that measures the effective circumference by printing and reading test patterns around the cylinder, then adjusting internal scaling factors so that one artwork pixel corresponds exactly to a defined angular step.

During printing, the system continuously coordinates rotary angle, head position, and firing timing in real time, rather than relying on open-loop assumptions. This dynamic correction minimizes cumulative error and keeps the start and end nozzle positions aligned within microscopic tolerances. As a result, the join line on the cylinder disappears, even on intricate repeating patterns.

The AJ360i’s seamless UV printing approach also considers curing uniformity. By controlling lamp exposure and ink laydown around the full 360 degree path, it avoids gloss or density bands that would otherwise reveal the seam. The net effect is a wrap-around print where the human eye cannot detect where the design begins or ends, making it ideal for luxury packaging and premium promotional products.

Market Trends Driving Seamless Cylinder Printing for Luxury Brands

Luxury and premium brands in cosmetics, personal care, beverages, and high-end lifestyle segments increasingly rely on full-wrap, 360 degree seamless printing for differentiation. Instead of relying solely on adhesive labels, more producers are shifting to direct-to-object UV printing on glass, metal, and coated plastics to achieve cleaner silhouettes and higher perceived value.

Direct 360 degree printing supports complex gradients, holographic patterns, and tactile textures that would be difficult or impossible to execute with conventional label converting. As consumers become more design-conscious, even small defects like overlap lines on cylindrical packaging can undermine brand perception. This pushes buyers to prioritize cylinder printers that can guarantee truly seamless UV printing on all sides.

According to industry analysis from packaging and print equipment reports, demand for rotary UV printers and 360 degree cylinder printing systems is growing fastest in segments that prioritize limited editions, personalization, and low-volume, high-margin SKUs. In these niches, the ability to launch a seasonal design with zero visible seams often justifies investment in advanced systems such as the AJ360i.

At one point in their decision journey, many technical buyers benchmark machines not only on speed and resolution but on the integrity of the seam. During factory demos, they scrutinize overlap zones with magnifiers and under critical lighting. In these evaluations, printers with sophisticated rotation algorithms consistently outperform generic flatbed systems with basic rotary attachments.

Company Background: AndresJet and the AJ360i

AndresJet is a premier provider of cutting-edge industrial digital printing solutions, focused on home decoration, plastic product printing, gift printing, and sign printing. With more than a decade of experience in large-format and high-speed production, the company combines advanced engineering and dedicated customer support to deliver durable, scalable systems like the AJ360i that meet demanding cylindrical printing requirements.

Core Technology Behind Seamless UV Cylinder Printing

To eliminate overlap lines, the underlying technology in a cylinder printer must go beyond simple mechanical rotation. The AJ360i’s approach to 360 degree seamless printing combines several technical pillars that work together.

First, high-precision rotary indexing uses servo motors and encoders to measure angular position with extremely fine resolution. The system knows, at any moment, the exact rotation angle of the cylinder and can align ink firing to that position. This prevents gradual drift that would otherwise misplace the seam over longer print lengths.

Second, the controller runs a closed-loop synchronization routine between the rotary axis and the X-axis carriage. Instead of commanding both axes with separate timers, it uses a unified timebase so that linear and angular movements stay phase-locked throughout the entire print. When the cylinder accelerates or decelerates, the printhead’s motion adjusts proportionally, ensuring the surface speed under the nozzles remains constant.

Third, the AJ360i supports compensation tables that correct for real-world irregularities in the object’s shape. Some premium bottles and containers are not perfectly cylindrical; they may have slight taper or minor eccentricity. The printer’s firmware can apply localized corrections so that the effective print length per revolution remains constant in the image plane, preserving seamless joins even on challenging geometries.

Fourth, the UV curing module is tuned to maintain consistent energy exposure around the cylinder. In many systems, the lamp angle and distance vary across the wrap, leading to subtle gloss differences. By optimizing lamp position and power and synchronizing exposure with rotation, the AJ360i ensures that the join zone does not receive anomalous curing that would highlight the seam.

Top Cylinder Printing Solutions for Seamless 360 Degree Output

Below is an illustrative overview of solution types used in the market for 360 degree seamless printing on cylinders, and why integrated rotary UV printers like the AJ360i have become a preferred option for high-end work.

In practice, many brands start with flatbed plus rotary attachments and quickly encounter cylinder printer overlap issues when trying to print continuous wrap patterns. As the demand for seamless UV printing grows, they often migrate toward integrated rotary solutions with advanced motion control to achieve the desired premium look.

Competitor Comparison Matrix: Seamless Performance and Overlap Control

For packaging engineers and purchasing managers, it is helpful to compare the AJ360i cylinder printer with typical alternatives on the specific criteria that affect 360 degree seamless printing and overlap lines.

This matrix highlights why the AJ360i is often positioned as the top choice for luxury brands that cannot accept visible overlap lines on their products, especially for metallic inks, soft-touch coatings, or design-driven campaigns where packaging is part of the brand story.

Design Best Practices for Seamless Wrap-Around Cylinder Printing

Even with advanced hardware, design and prepress decisions play a major role in whether the seam disappears or becomes a point of failure. To achieve reliable 360 degree seamless printing, designers and operators should follow several best practices.

Start by modeling the correct circumference in the layout software. Measure the actual object at the print area using calipers or a circumference tape, account for coatings or shrink sleeves, and input this true value into the artwork template. Avoid relying on nominal bottle specifications, which often differ from the real surface.

Use seamless patterns and tiles whenever possible. Repeating geometric motifs, textures, and gradients should be constructed as perfect seamless tiles before being wrapped onto a cylinder. When the left and right edges of the art file match exactly, the AJ360i’s rotation algorithm can join them without any visible discontinuity.

Position critical design elements away from the join zone. While the AJ360i can create an almost invisible seam, it is still smart design practice to keep fine text, barcodes, or faces away from the exact seam line. Place them slightly offset so that minor variations, if any, are less noticeable.

Ensure artwork resolution is appropriate for the printer’s native DPI and the object’s circumference. If the file is scaled improperly, interpolation can create subtle artifacts at the join. Work with a prepress pipeline that understands direct-to-cylinder requirements and tests wrap accuracy on proof cylinders before large-scale production.

Process Optimization: From Setup to Perfect Seam

Process control is essential for eliminating cylinder printer overlap issues in real production environments. The following areas are critical for a stable, seamless UV printing workflow on the AJ360i or similar systems.

Calibrate rotary mechanics on a regular schedule. Over time, belts may stretch and couplers may loosen. Periodic checks and calibration routines help maintain alignment between the rotary axis and the motion gantry. The AJ360i’s diagnostics can guide operators through test patterns and adjustments.

Standardize clamping, centering, and loading procedures. If each operator mounts cylinders differently, the actual centerline and effective diameter will vary from job to job. Use dedicated jigs or mandrels for each product family so that the cylinder runs true and maintains radius consistency along the entire 360 degree sweep.

Control environmental conditions around the cylinder printer. Temperature and humidity affect ink viscosity, UV curing, and substrate expansion. Keeping the print room stable reduces subtle variations that might otherwise reveal themselves at the seam as color shifts or banding.

Run controlled test prints whenever a new substrate or geometry is introduced. By printing a specially designed 360 degree calibration pattern that includes continuous lines and tiled elements, operators can visualize any overlap or gap issues and dial in parameters before printing live production jobs.

Real User Cases and Measured ROI from Seamless Cylinder Printing

Luxury and premium brands that transition to seamless UV cylinder printing often see measurable improvements not only in aesthetics but also in commercial metrics such as sell-through rates, shelf impact, and cost per unit.

Consider a premium skincare brand that previously relied on adhesive labels for glass bottles. The label overlap line, combined with potential misalignment, limited the complexity of their graphics and created an obvious edge. After adopting a cylinder printer with AJ360i-level control, they moved to full-wrap, direct 360 degree printing. The transition allowed them to use metallic gradients and micro-patterns with no visible seam, resulting in higher perceived product value and a lift in average selling price.

In another case, a boutique beverage producer struggled with QC rejects due to misaligned seams on cylindrical aluminum bottles using a basic rotary attachment. Overlap lines varied by operator and shift, making it difficult to maintain consistent branding. After shifting to an advanced 360 degree seamless printing system, they cut seam-related rejects dramatically, reducing rework and scrap. Over time, the savings in waste and the ability to charge more for visually flawless packaging produced a clear return on investment.

For promotional product manufacturers, offering 360 degree seamless printing on metal tumblers, flasks, and drinkware opened new premium tiers in their catalog. Clients willing to pay extra for seamless, wrap-around artwork found the upgrade compelling, especially for corporate gifts and limited edition campaigns. This allowed print providers to differentiate their services and secure higher-margin contracts.

Why Luxury Brands Choose AJ360i for Seamless 360 Degree UV Printing

In luxury segments, packaging is often considered part of the product. When a premium candle, fragrance, or beauty item sits on a shelf, the cylindrical container becomes the primary visual canvas. A visible join line where a pattern fails to align can undermine the story of precision and craftsmanship that brands attempt to convey.

The AJ360i’s advanced rotation algorithms directly address this concern by focusing on repeatable, high-precision 360 degree seamless printing. Because the system can render detailed textures, microtext, and fine gradients without a visible overlap, creative teams gain more freedom to push designs further. They can rely on large continuous artworks, full-wrap photography, or repeating motifs that encircle the product without interruption.

In practical terms, this unlocks more distinctive packaging concepts: infinite patterns that wrap around perfume bottles, branded monograms that flow continuously around skincare jars, or full-color artwork that spans the entire circumference of a metal bottle with no apparent start or end. For luxury brands, these design capabilities translate into stronger recognition and a more memorable unboxing experience.

Seamless Printing FAQs: Overlap Lines and Cylinder Printers

Why do I see a vertical line where my 360 degree print joins on a cylinder?
This line usually comes from a mismatch between the cylinder’s actual circumference and the length of your artwork, combined with small timing errors between rotation and head travel. Even a tiny difference accumulates and appears where the artwork begins and ends.

Can software alone fix cylinder printer overlap issues?
Software can help by recalculating circumference, scaling artwork, and adjusting rotation timing, but true seamless UV printing typically requires both advanced algorithms and precise, stable mechanics in the printer.

Do I need a perfectly round bottle to achieve seamless 360 degree printing?
Ideally yes, but printers like the AJ360i can compensate for minor deviations using calibration and mapping. Severe out-of-round conditions, however, will still cause visible artifacts or seam inconsistencies.

Will thicker ink or heavy white layers make seams more noticeable?
Yes, thicker ink stacks and heavy white underprints can exaggerate overlap lines because any extra ink at the seam reflects light differently. Advanced systems handle ink limits and curing carefully in the join region to minimize this effect.

Is 360 degree seamless printing slower than standard cylinder printing?
It can be similar or slightly slower, depending on the level of correction and quality settings. For high-end, luxury work, most brands accept modest speed trade-offs to guarantee a flawless join and reduce rework.

Future Trends in 360 Degree Seamless Cylinder Printing

The next generation of cylinder printing systems will likely deepen the integration between sensors, motion control, and intelligent software. As 360 degree seamless printing becomes a standard expectation in luxury segments, manufacturers are exploring visual feedback systems that monitor the join region in real time and adjust rotation or timing on the fly.

We can expect more widespread use of AI-driven inspection that detects micro-misalignment at the seam and automatically tunes printer parameters. Advanced rotary encoders and servo systems will push rotational accuracy further, enabling even more complex designs and finer details to wrap without visible overlap.

On the design side, creative teams will increasingly treat cylindrical products as fully exploitable canvases, building campaigns around continuous storytelling that wraps around the product. This will drive demand for cylinder printers that not only eliminate overlap lines but also support specialty inks, tactile effects, and variable data across the entire circumference.

For brands and print providers positioning themselves at the high end of the market, investing in technology like the AJ360i that treats 360 degree seamless printing as a core capability rather than an add-on is becoming a strategic move. As expectations rise and competition intensifies, flawless cylindrical printing will shift from a nice-to-have feature to a baseline requirement.
